Graco FD2113 1-1/2″ Diaphragm Pump
£7,515.00 ex VAT

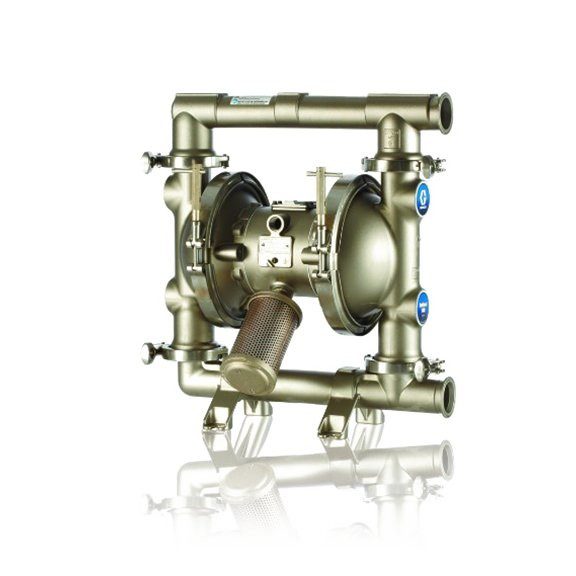

Graco FD2113 SaniForce 1590, 1.5″ FG SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, PO Diaphragms
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco FD2113 is a 1-1/2-inch SaniForce 1590 hygienic air-operated double-diaphragm pump configured with a food-grade 316 stainless steel pump housing and a 316 stainless steel centre body. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, PTFE balls, and 316 stainless steel seats.
Graco FD2113 configuration
- Pump family: Graco SaniForce 1590
- Port size: 1-1/2 in
- Pump housing: Food-Grade 316 Stainless Steel
- Centre body: 316 Stainless Steel
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: PTFE
- Seats: 316 Stainless Steel
SaniForce 1590 pump features
Graco’s SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 100 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
| Weight | 48.92 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | 316 Stainless Steel |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | 316 Stainless Steel |
| Port Size | 1-1/2 in |
| Pump Housing Material | Food-Grade 316 Stainless Steel |
