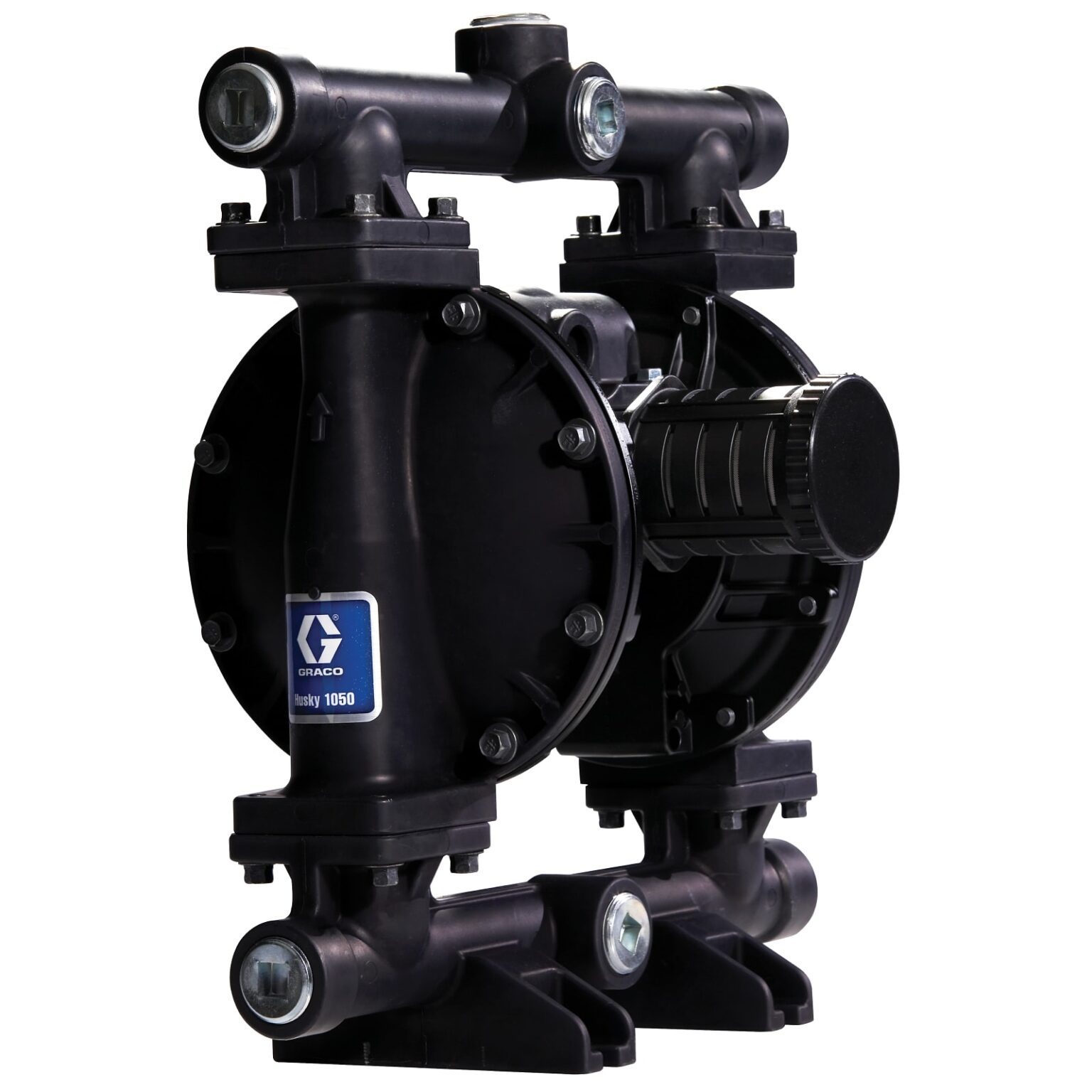

Graco 653009 1″ Diaphragm Pump
£9,789.00 ex VAT
Graco 653009 Husky 1050e 1 in. (25.4 mm) BSPT SS Pump, ATEX AC Motor, SS Center Section, SS Seats, PTFE Balls & PO Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 653009 is a 1-inch Husky 1050e electrically operated double-diaphragm pump configured with a 316 stainless steel pump housing, a 316 stainless steel centre body, and BSPT connections. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, PTFE balls, and 316 stainless steel seats.
Graco 653009 configuration
- Pump family: Graco Husky 1050e
- Port size: 1 in
- Connection: BSPT
- Pump housing: 316 Stainless Steel
- Centre body: 316 Stainless Steel
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: PTFE
- Seats: 316 Stainless Steel
Husky 1050e pump features
Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air-charged drive allows pulsation to be eliminated or reduced without expensive pulsation dampeners or surge tanks.
| Weight | 112.04 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | 316 Stainless Steel |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | 316 Stainless Steel |
| Port Size | 1 in |
| Thread | BSPT |
| Pump Housing Material | 316 Stainless Steel |
