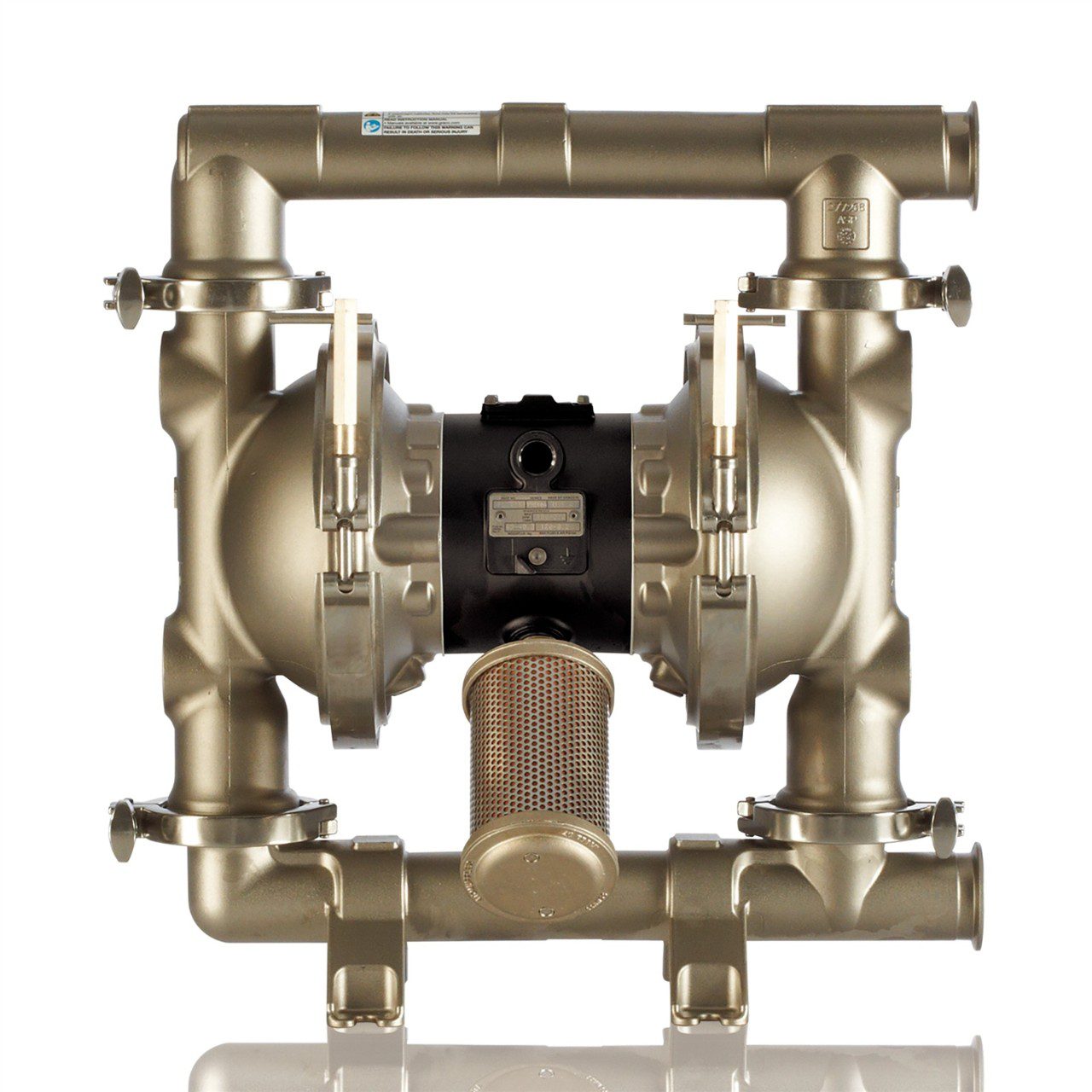

Graco FA3222 2″ Diaphragm Pump
£7,567.00 ex VAT
Graco FA3222 SaniForce 2150, 2″ FG SST Pneumatic Diaphragm Pump, AL Center, SS Seats, SP Balls, SP Diaphragms
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco FA3222 is a 2-inch SaniForce 2150 hygienic air-operated double-diaphragm pump configured with a food-grade 316 stainless steel pump housing and an aluminium centre body. Its wetted configuration uses Santoprene diaphragms, Santoprene balls, and 316 stainless steel seats.
Graco FA3222 configuration
- Pump family: Graco SaniForce 2150
- Port size: 2 in
- Pump housing: Food-Grade 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: 316 Stainless Steel
SaniForce 2150 pump features
Graco’s SaniForce 2150, 2-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 160 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership.
| Weight | 73.48 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Aluminium |
| Diaphragm Material | Santoprene |
| Seat Material | 316 Stainless Steel |
| Port Size | 2 in |
| Pump Housing Material | Food-Grade 316 Stainless Steel |
