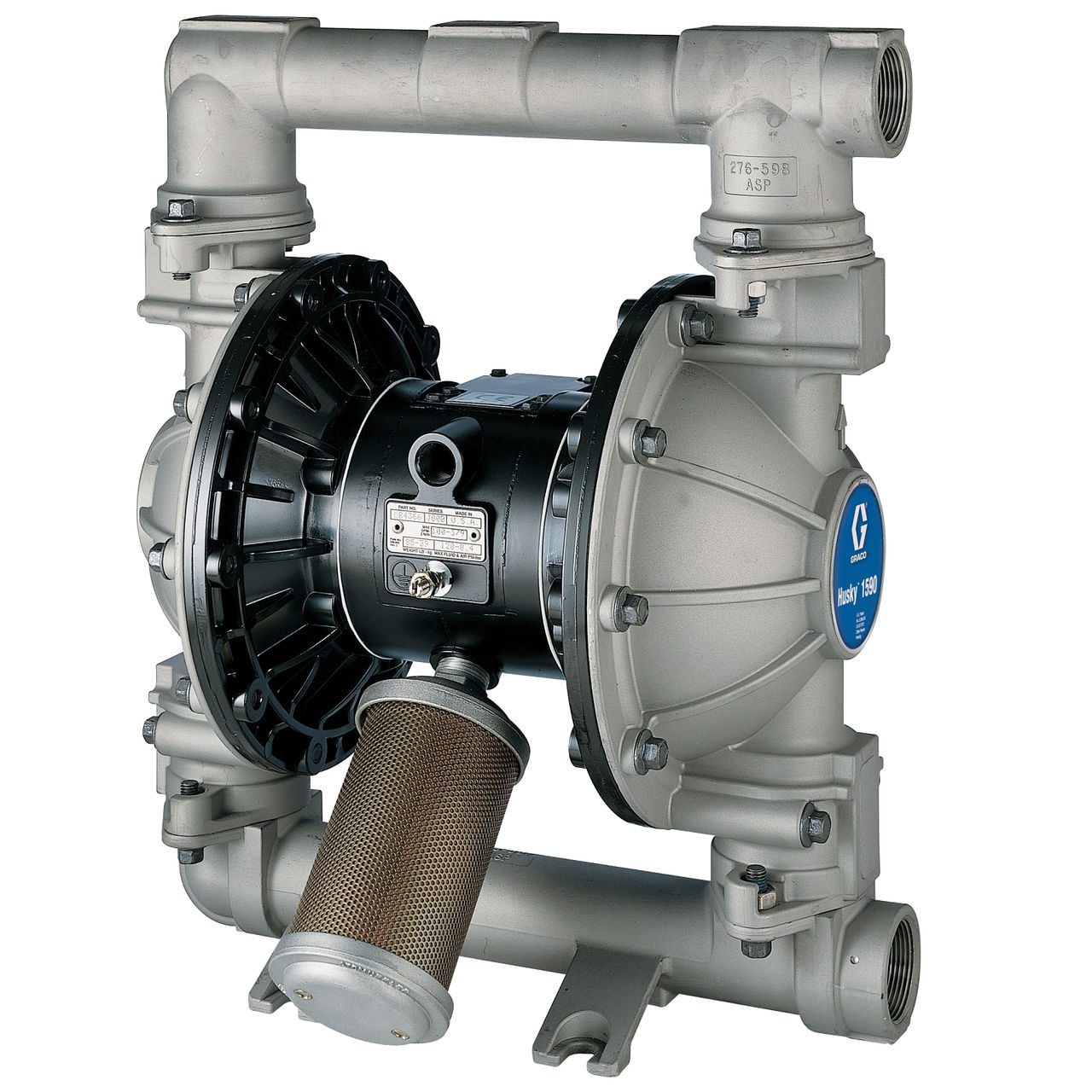

Graco DBDGGG 1-1/2″ Diaphragm Pump
£4,203.00 ex VAT
Graco DBDGGG Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DBDGGG is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and BSP connections. Its wetted configuration uses Graco Engineered Thermoplastic diaphragms, Graco Engineered Thermoplastic balls, and Graco Engineered Thermoplastic seats.
Graco DBDGGG configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: BSP
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: Graco Engineered Thermoplastic
- Balls: Graco Engineered Thermoplastic
- Seats: Graco Engineered Thermoplastic
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 39.86 kg |
|---|---|
| Ball Material | Graco Engineered Thermoplastic |
| Centre Body Material | Aluminium |
| Diaphragm Material | Graco Engineered Thermoplastic |
| Seat Material | Graco Engineered Thermoplastic |
| Port Size | 1-1/2 in |
| Thread | BSP |
| Pump Housing Material | 316 Stainless Steel |
