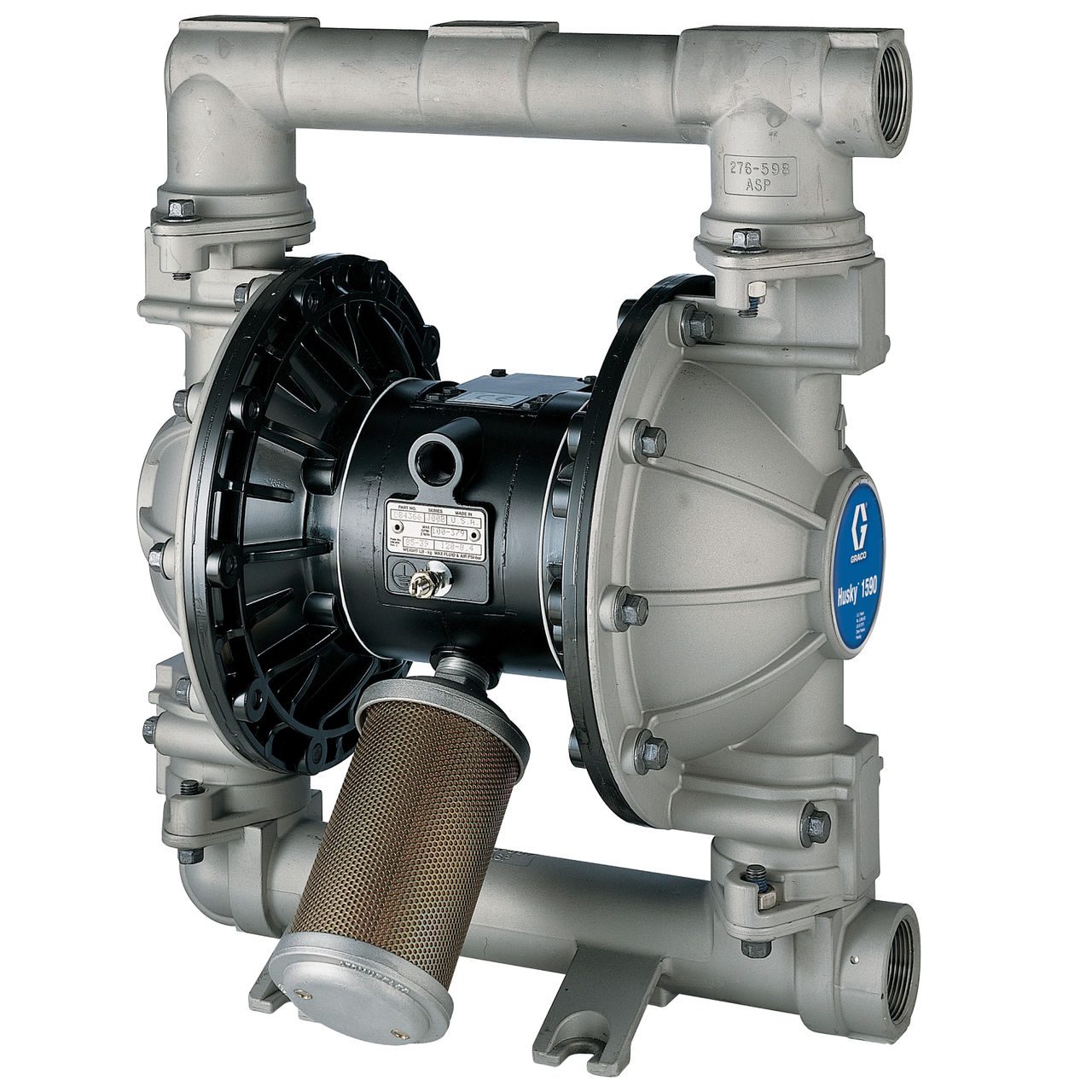

Graco DBD666 1-1/2″ Diaphragm Pump
£4,644.00 ex VAT
Graco DBD666 Husky 1590 SS 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DBD666 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and BSP connections. Its wetted configuration uses Santoprene diaphragms, Santoprene balls, and Santoprene seats.
Graco DBD666 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: BSP
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: Santoprene
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 40 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Aluminium |
| Diaphragm Material | Santoprene |
| Seat Material | Santoprene |
| Port Size | 1-1/2 in |
| Thread | BSP |
| Pump Housing Material | 316 Stainless Steel |
