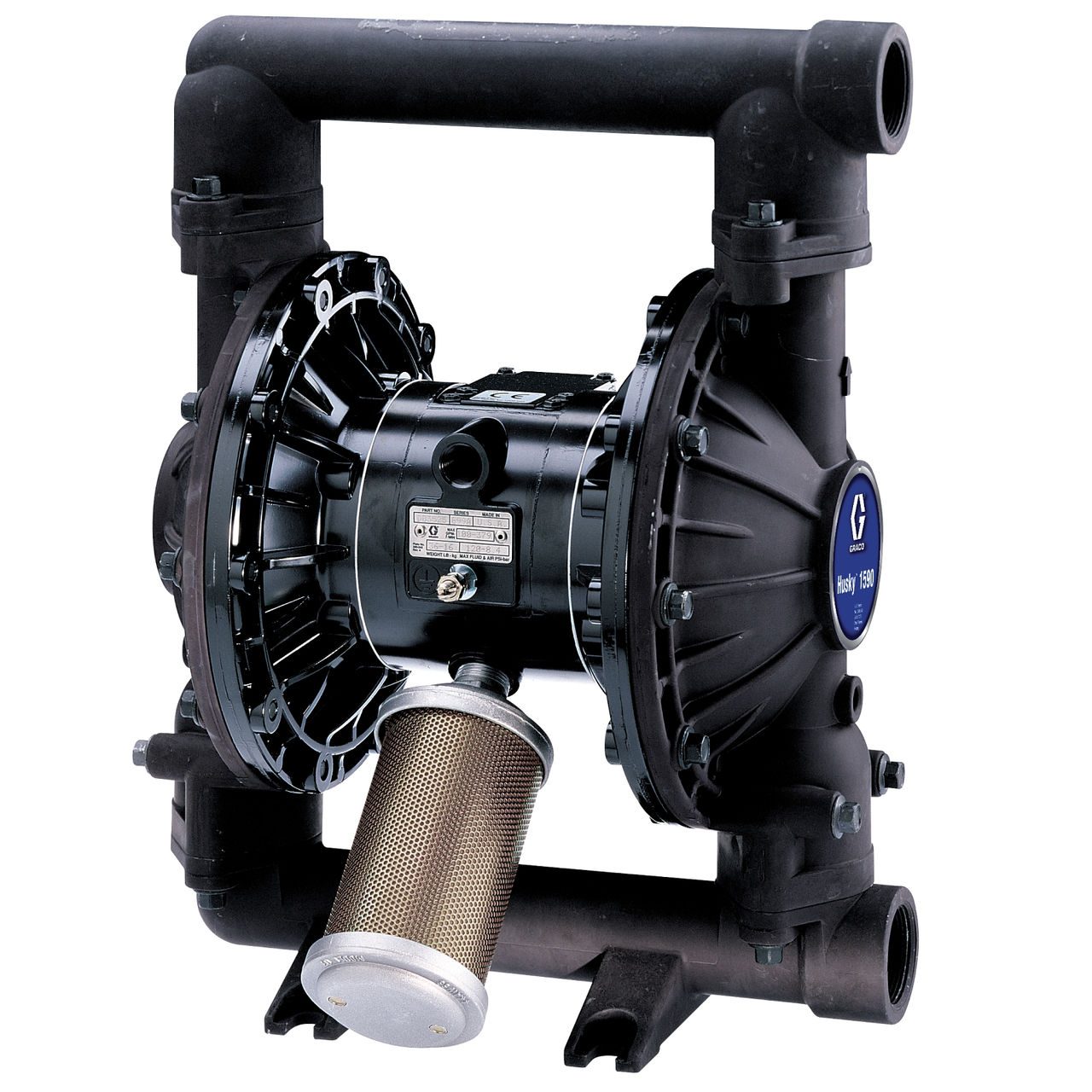

Graco DBC311 1-1/2″ Diaphragm Pump
£2,226.00 ex VAT
Graco DBC311 Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DBC311 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and BSP connections. Its wetted configuration uses PTFE diaphragms, PTFE balls, and Santoprene with FKM Seal seats.
Graco DBC311 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: BSP
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: PTFE
- Balls: PTFE
- Seats: Santoprene with FKM Seal
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 20.16 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE |
| Seat Material | Santoprene with FKM Seal |
| Port Size | 1-1/2 in |
| Thread | BSP |
| Pump Housing Material | Aluminium |
