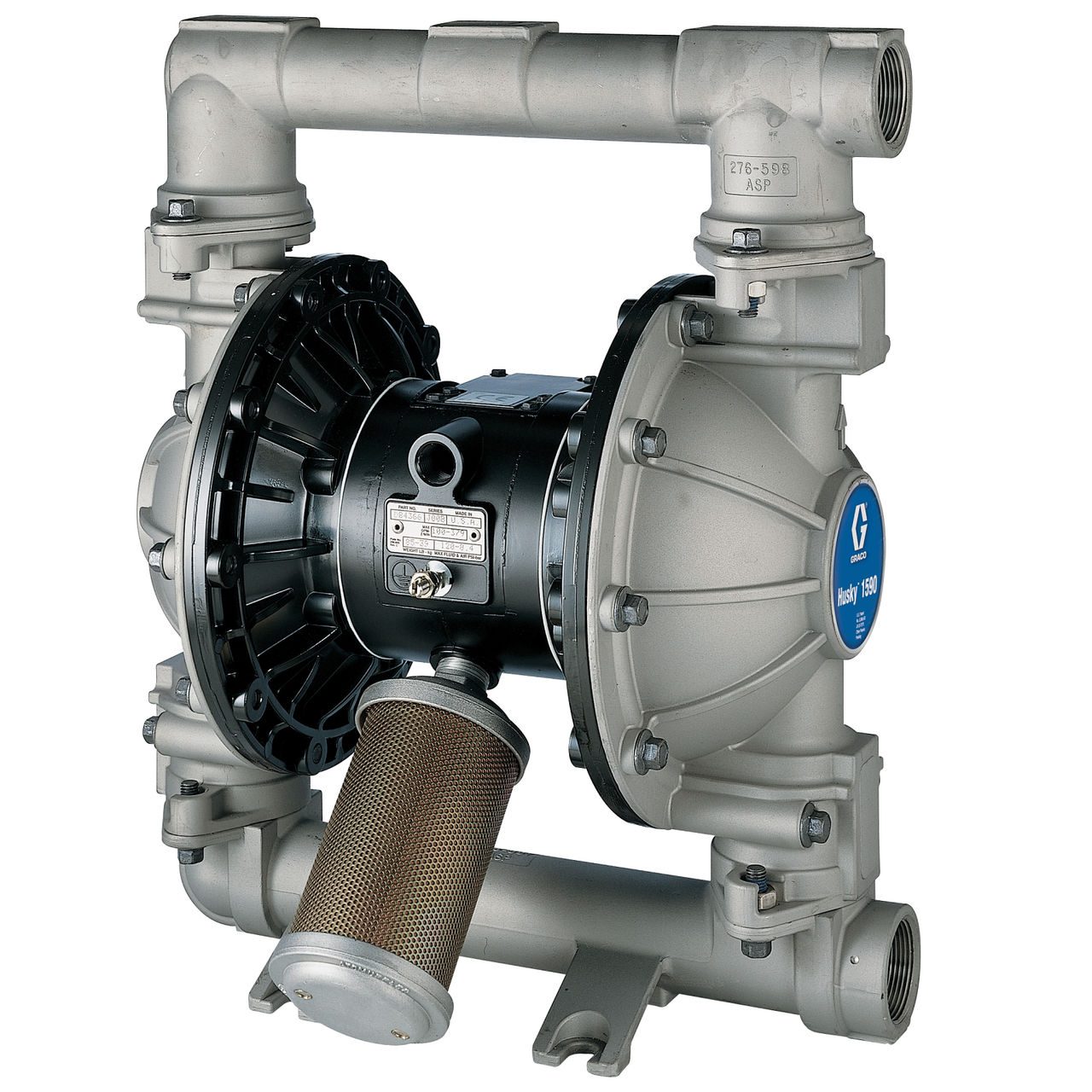

Graco DB4525 1-1/2″ Diaphragm Pump
£4,203.00 ex VAT
Graco DB4525 Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DB4525 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses TPE diaphragms, Acetal balls, and TPE seats.
Graco DB4525 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: NPT
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: TPE
- Balls: Acetal
- Seats: TPE
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 45.75 kg |
|---|---|
| Ball Material | Acetal |
| Centre Body Material | Aluminium |
| Diaphragm Material | TPE |
| Seat Material | TPE |
| Port Size | 1-1/2 in |
| Thread | NPT |
| Pump Housing Material | 316 Stainless Steel |
