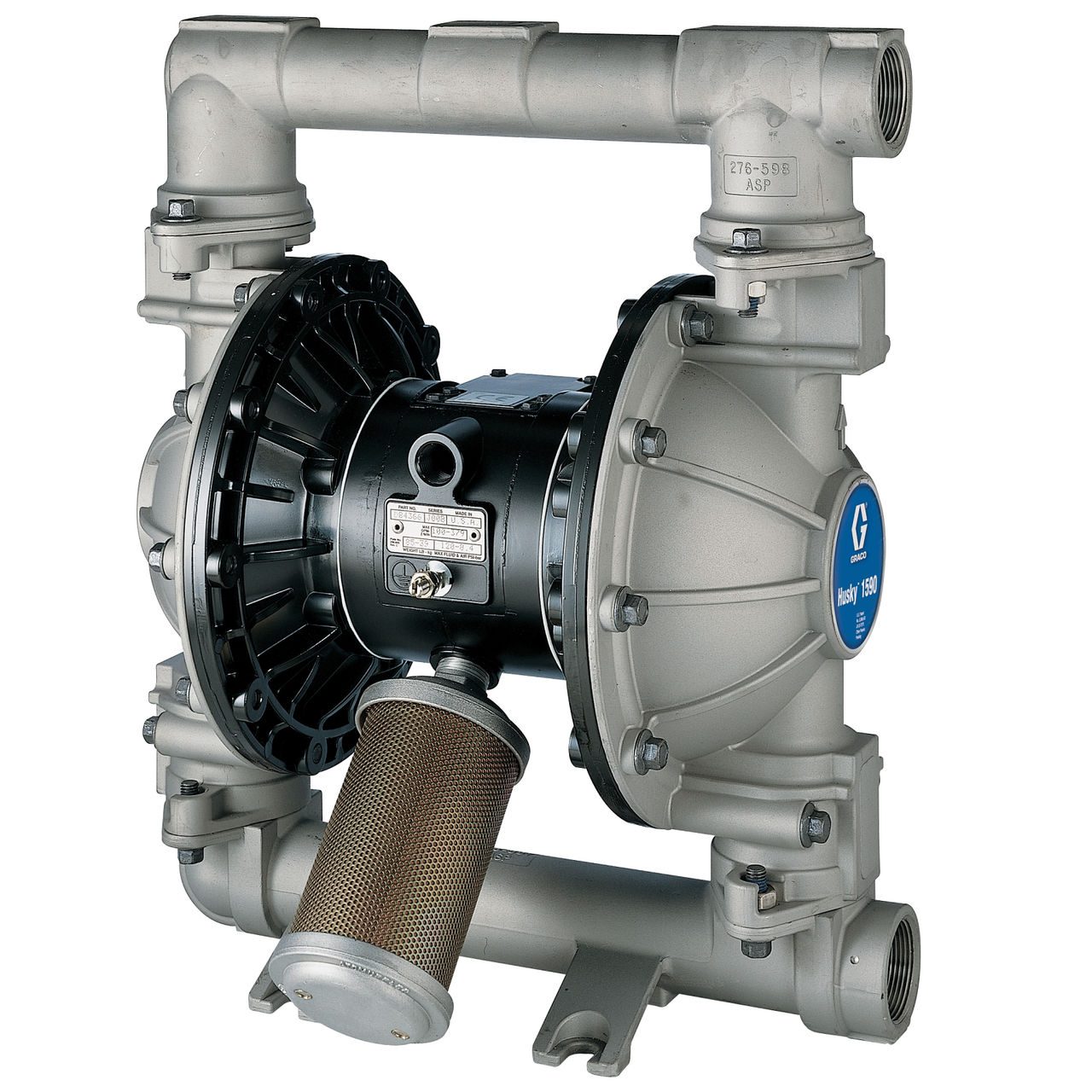

Graco DB4341 1-1/2″ Diaphragm Pump
£5,089.00 ex VAT
Graco DB4341 Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DB4341 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses PTFE diaphragms, Hardened Stainless Steel balls, and 316 stainless steel seats.
Graco DB4341 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: NPT
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: PTFE
- Balls: Hardened Stainless Steel
- Seats: 316 Stainless Steel
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 42.8 kg |
|---|---|
| Ball Material | Hardened Stainless Steel |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 1-1/2 in |
| Thread | NPT |
| Pump Housing Material | 316 Stainless Steel |
