Graco DB3341 1-1/2″ Diaphragm Pump
£2,828.00 ex VAT
Graco DB3341 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

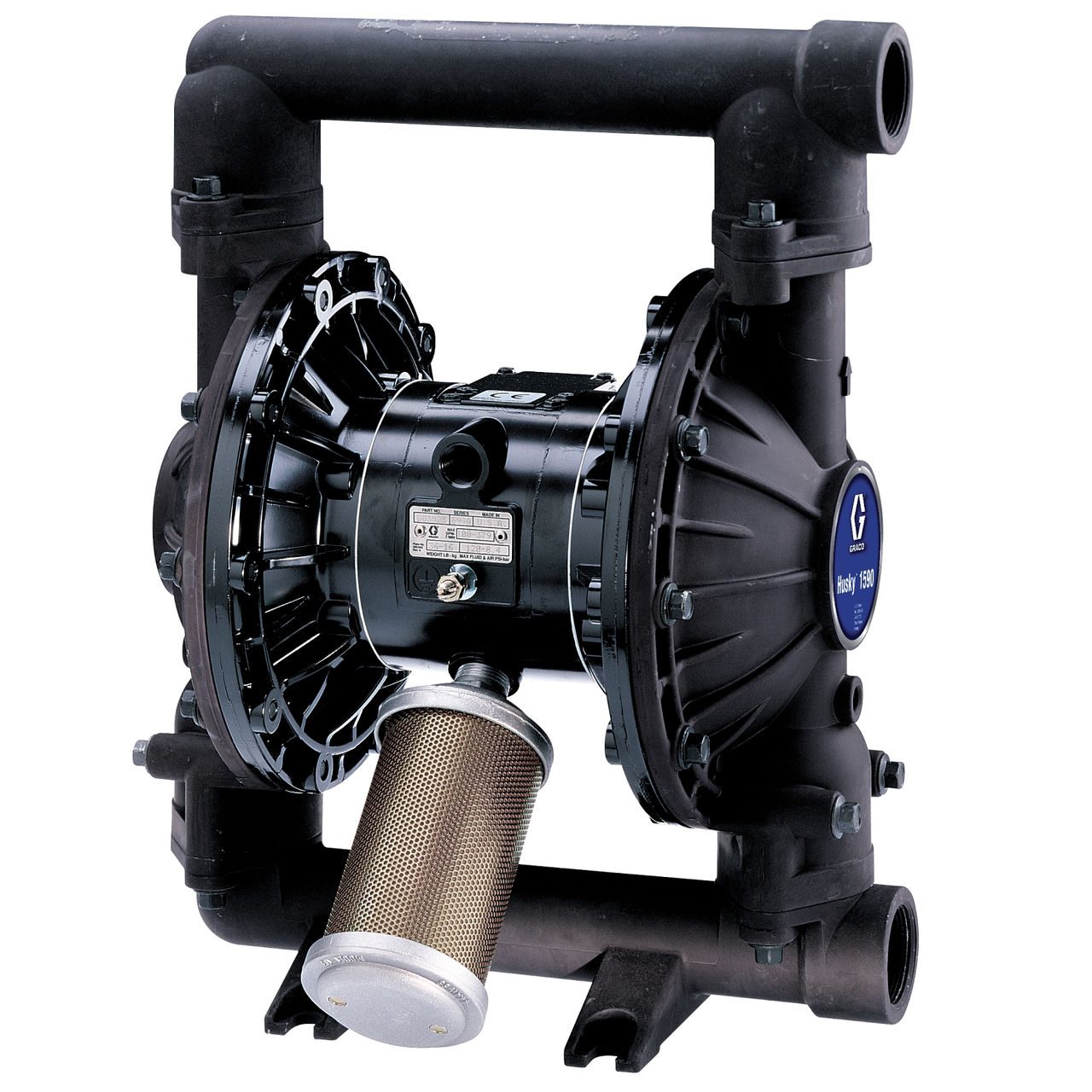

The Graco DB3341 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses PTFE diaphragms, Hardened Stainless Steel balls, and 316 stainless steel seats.
Graco DB3341 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: NPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: PTFE
- Balls: Hardened Stainless Steel
- Seats: 316 Stainless Steel
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 12.7 kg |
|---|---|
| Ball Material | Hardened Stainless Steel |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 1-1/2 in |
| Thread | NPT |
| Pump Housing Material | Aluminium |
