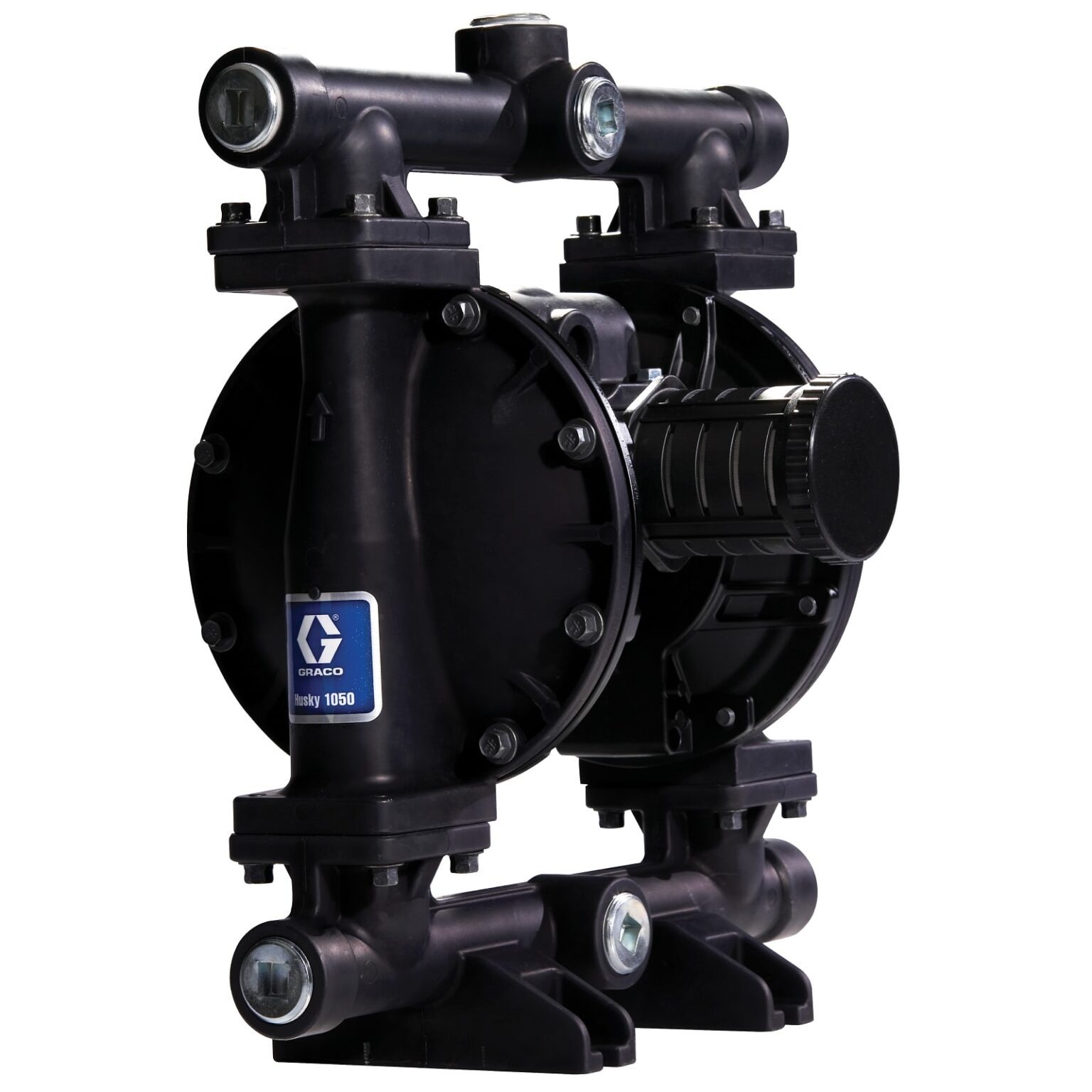

Graco 648016 1″ Diaphragm Pump
£5,450.00 ex VAT
Graco 648016 Husky 1050e 1 in. (25.4 mm) BSPT AL Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 648016 is a 1-inch Husky 1050e electrically operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and BSPT connections. Its wetted configuration uses Graco Engineered Thermoplastic diaphragms, balls, and seats.
Graco 648016 configuration
- Pump family: Graco Husky 1050e
- Port size: 1 in
- Connection: BSPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: Graco Engineered Thermoplastic
- Balls: Graco Engineered Thermoplastic
- Seats: Graco Engineered Thermoplastic
Husky 1050e pump features
Husky e-Series pumps are ideal for applications that require low pulsation and a smooth flow. The patented air-charged drive allows pulsation to be eliminated or reduced without expensive pulsation dampeners or surge tanks.
| Weight | 66 kg |
|---|---|
| Ball Material | Graco Engineered Thermoplastic |
| Centre Body Material | Aluminium |
| Diaphragm Material | Graco Engineered Thermoplastic |
| Seat Material | Graco Engineered Thermoplastic |
| Port Size | 1 in |
| Thread | BSPT |
| Pump Housing Material | Aluminium |
