Graco DB2911 1-1/2″ Diaphragm Pump
£3,737.00 ex VAT
Graco DB2911 1-1/2″ Diaphragm Pump featuring PTFE diaphragms, Polypropylene housing and PTFE balls. Check the specification and product code before ordering.
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

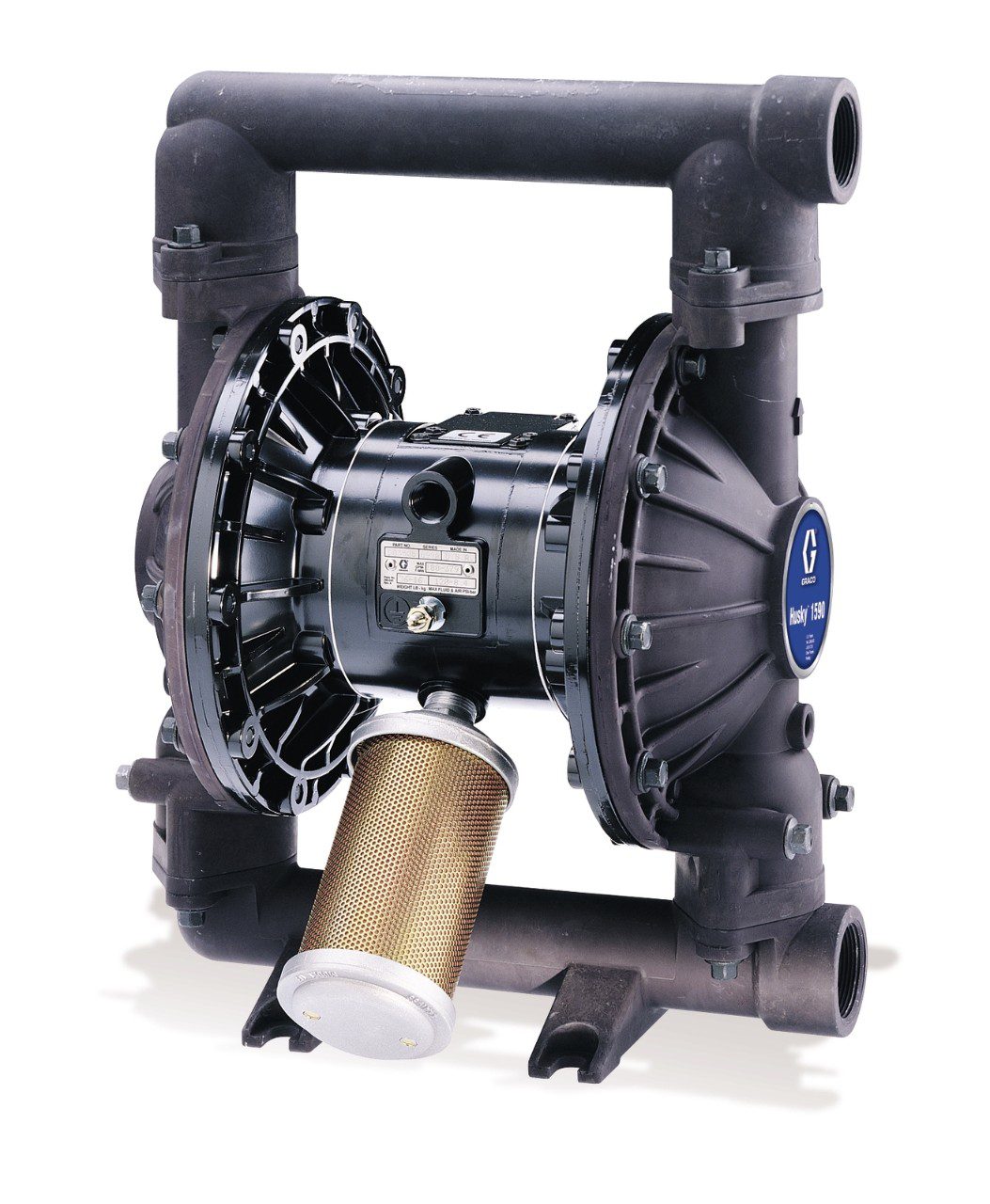

The Graco DB2911 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a polypropylene pump housing. Its wetted configuration uses PTFE diaphragms, PTFE balls, and polypropylene seats.
Graco DB2911 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Pump housing: Polypropylene
- Diaphragms: PTFE
- Balls: PTFE
- Seats: Polypropylene
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 18.25 kg |
|---|---|
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| Seat Material | Polypropylene |
| Port Size | 1-1/2 in |
| Pump Housing Material | Polypropylene |
