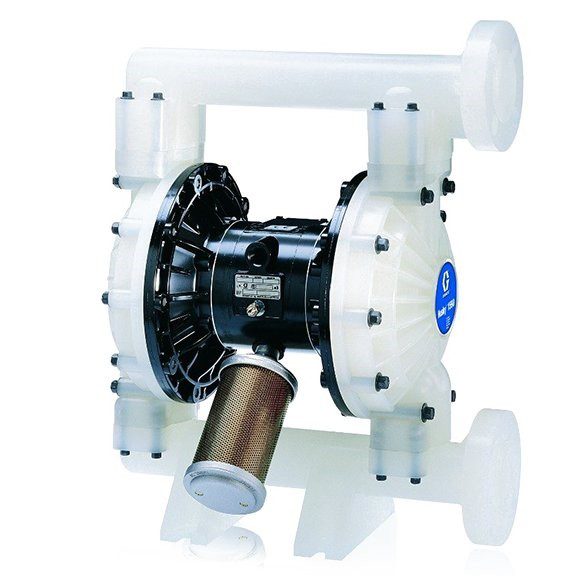

Graco DB2777 1-1/2″ Diaphragm Pump
£3,257.00 ex VAT
Graco DB2777 Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DB2777 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a polypropylene pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses Buna-N diaphragms, Buna-N balls, and Buna-N seats.
Graco DB2777 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Connection: NPT
- Pump housing: Polypropylene
- Centre body: Aluminium
- Diaphragms: Buna-N
- Balls: Buna-N
- Seats: Buna-N
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 17.76 kg |
|---|---|
| Ball Material | Buna-N |
| Centre Body Material | Aluminium |
| Diaphragm Material | Buna-N |
| Seat Material | Buna-N |
| Port Size | 1-1/2 in |
| Thread | NPT |
| Pump Housing Material | Polypropylene |
