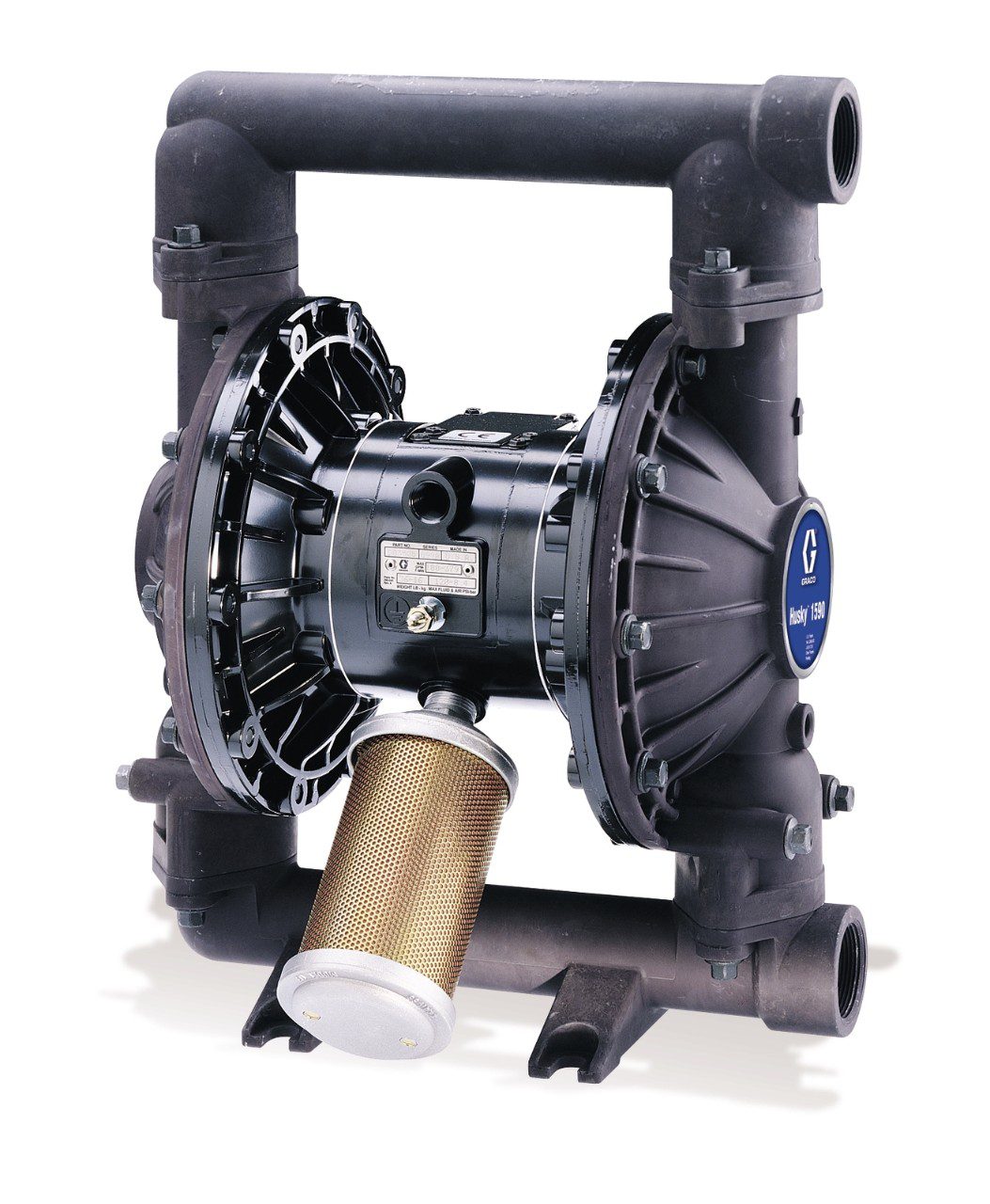

Graco DB2377 1-1/2″ Diaphragm Pump
£3,225.00 ex VAT
Graco DB2377 1-1/2″ Diaphragm Pump featuring PTFE diaphragms, Polypropylene housing and Buna-N balls. Check the specification and product code before ordering.
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DB2377 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a polypropylene pump housing. Its wetted configuration uses PTFE diaphragms, Buna-N balls, and 316 stainless steel seats.
Graco DB2377 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Pump housing: Polypropylene
- Diaphragms: PTFE
- Balls: Buna-N
- Seats: 316 Stainless Steel
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 18.62 kg |
|---|---|
| Ball Material | Buna-N |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 1-1/2 in |
| Pump Housing Material | Polypropylene |
