Graco D5B977 1/2″ Diaphragm Pump
£807.00 ex VAT
Graco D5B977 Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, BN Balls & BN Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

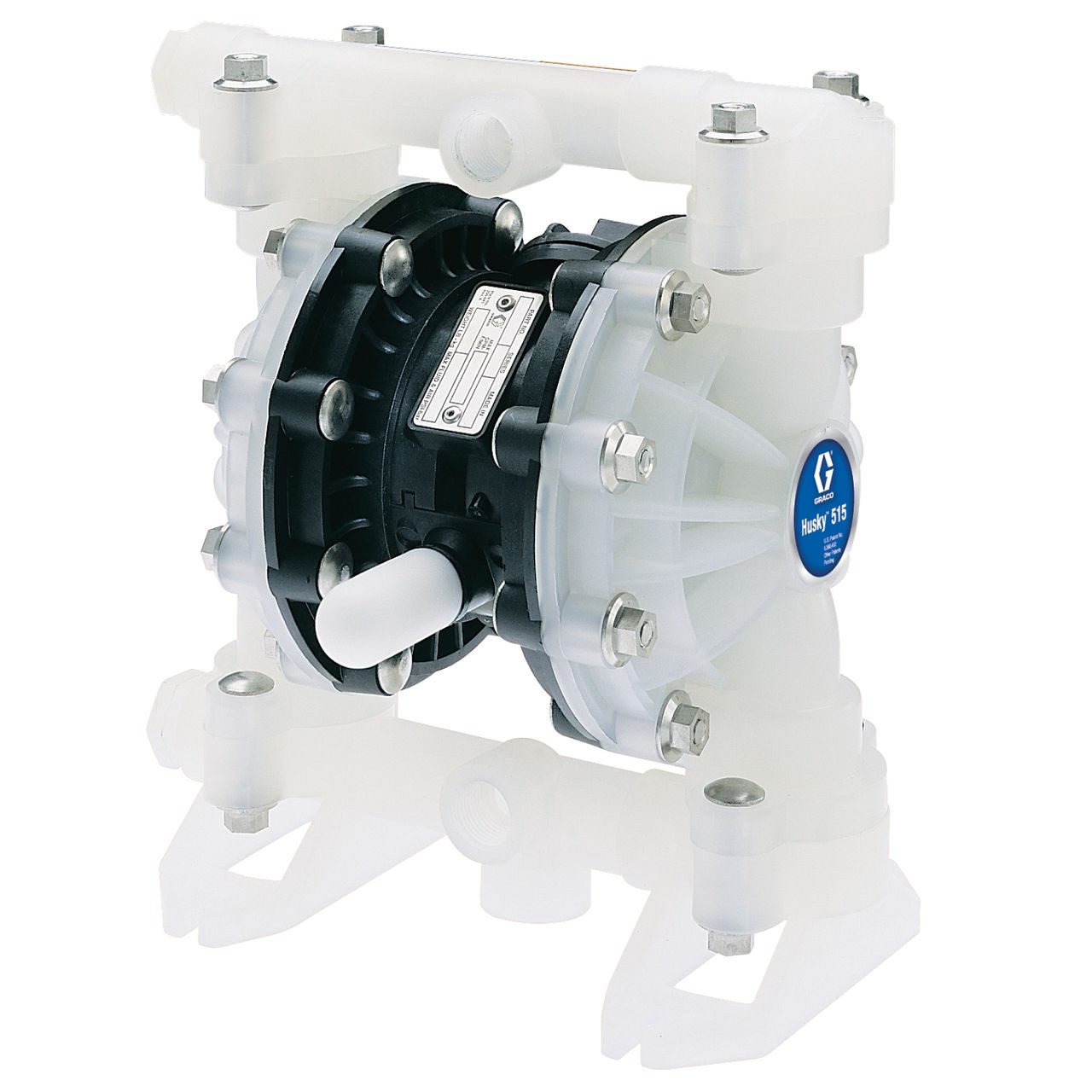

The Graco D5B977 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with a polypropylene pump housing, a polypropylene centre body, and BSP connections. Its wetted configuration uses Buna-N diaphragms, Buna-N balls, and polypropylene seats.
Graco D5B977 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: BSP
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: Buna-N
- Balls: Buna-N
- Seats: Polypropylene
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 3.74 kg |
|---|---|
| Ball Material | Buna-N |
| Centre Body Material | Polypropylene |
| Diaphragm Material | Buna-N |
| Seat Material | Polypropylene |
| Port Size | 1/2 in |
| Thread | BSP |
| Pump Housing Material | Polypropylene |
