Graco D5A331 1/2″ Diaphragm Pump
£1,476.00 ex VAT
Graco D5A331 Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

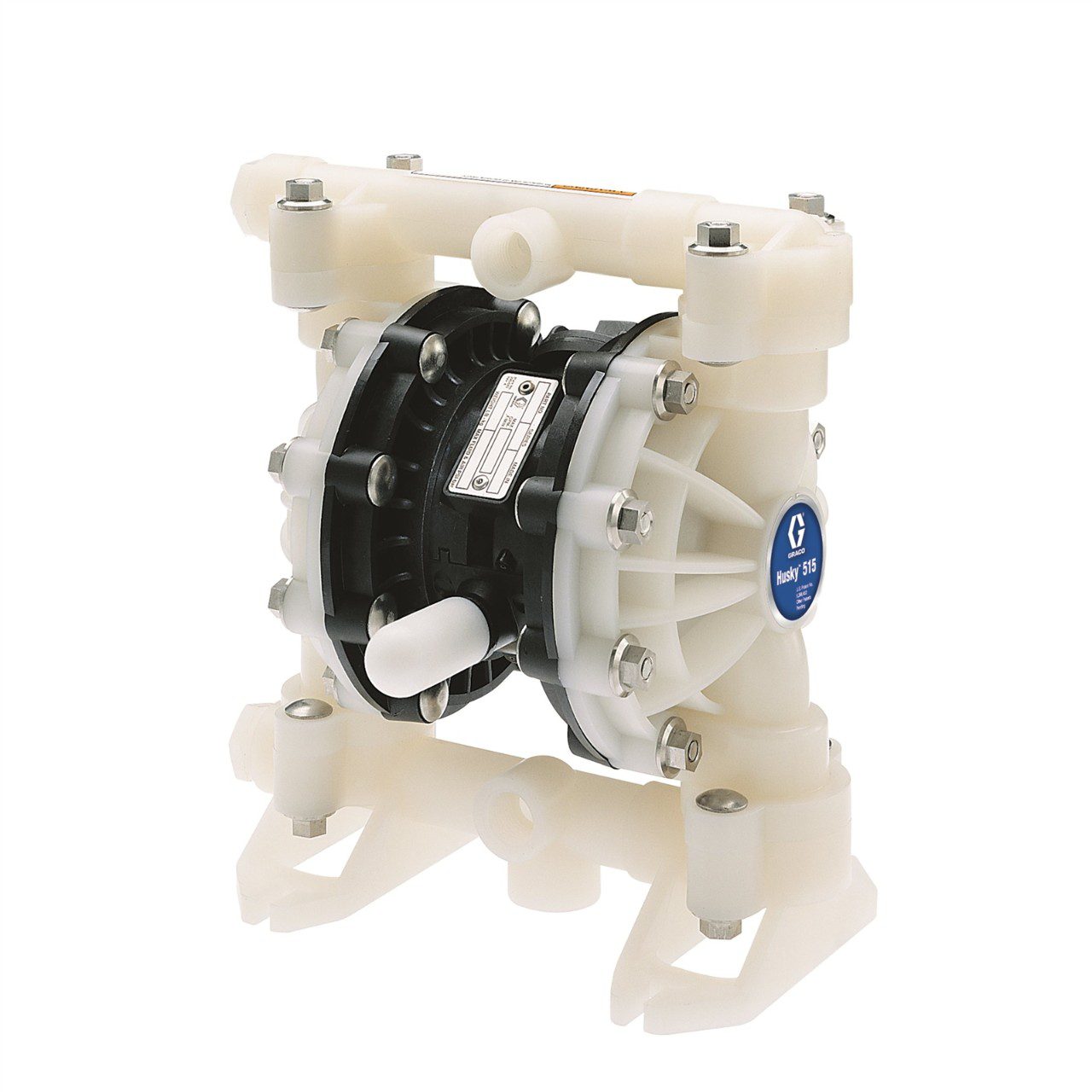

The Graco D5A331 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with an acetal pump housing, a polypropylene centre body, and BSP connections. Its wetted configuration uses PTFE diaphragms, 316 stainless steel balls, and 316 stainless steel seats.
Graco D5A331 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: BSP
- Pump housing: Acetal
- Centre body: Polypropylene
- Diaphragms: PTFE
- Balls: 316 Stainless Steel
- Seats: 316 Stainless Steel
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 5 kg |
|---|---|
| Ball Material | 316 Stainless Steel |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 1/2 in |
| Thread | BSP |
| Pump Housing Material | Acetal |
