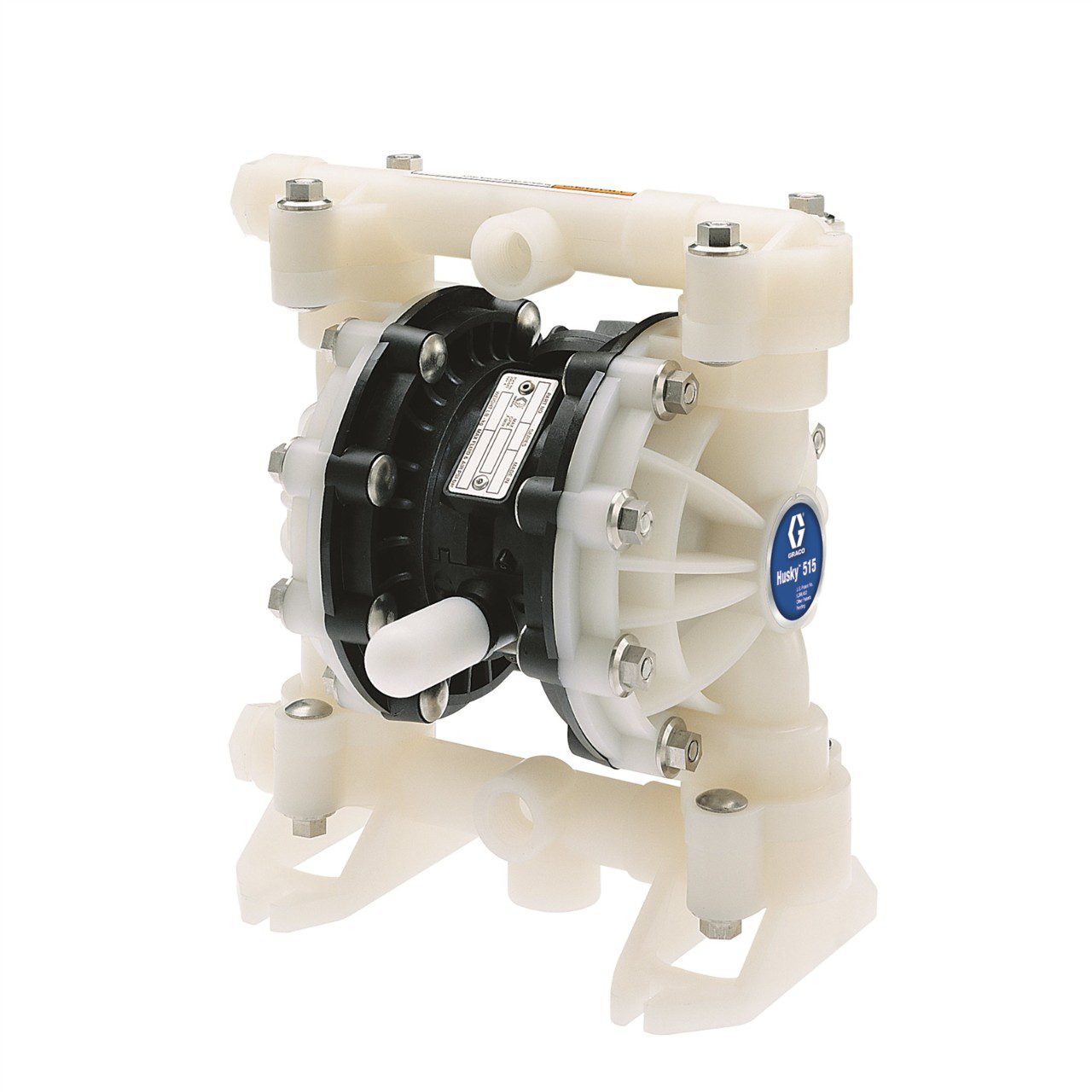

Graco D5A255 1/2″ Diaphragm Pump
£943.00 ex VAT
Graco D5A255 Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, TPE Balls & TPE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco D5A255 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with an acetal pump housing, a polypropylene centre body, and BSP connections. Its wetted configuration uses TPE diaphragms, TPE balls, and acetal seats.
Graco D5A255 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: BSP
- Pump housing: Acetal
- Centre body: Polypropylene
- Diaphragms: TPE
- Balls: TPE
- Seats: Acetal
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 4.3 kg |
|---|---|
| Ball Material | TPE |
| Centre Body Material | Polypropylene |
| Diaphragm Material | TPE |
| Seat Material | Acetal |
| Port Size | 1/2 in |
| Thread | BSP |
| Pump Housing Material | Acetal |
