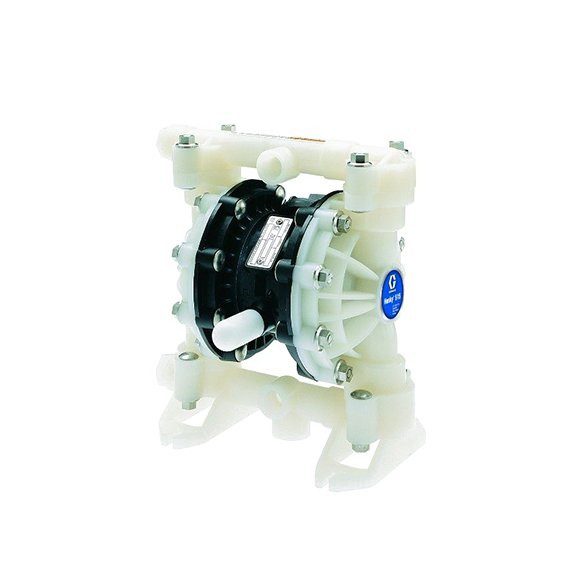

Graco D55A88 1/2″ Diaphragm Pump
£1,547.00 ex VAT
Graco D55A88 Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, FKM Balls & FKM Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco D55A88 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with a PVDF pump housing, a polypropylene centre body, and NPT connections. Its wetted configuration uses FKM diaphragms, FKM balls, and PVDF seats.
Graco D55A88 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: NPT
- Pump housing: PVDF
- Centre body: Polypropylene
- Diaphragms: FKM
- Balls: FKM
- Seats: PVDF
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 4.84 kg |
|---|---|
| Ball Material | FKM |
| Centre Body Material | Polypropylene |
| Diaphragm Material | FKM |
| Seat Material | PVDF |
| Port Size | 1/2 in |
| Thread | NPT |
| Pump Housing Material | PVDF |
