Graco D52D01 1/2″ Diaphragm Pump
£673.00 ex VAT
Graco D52D01 Husky 515 PP Pump, PP Center Section, Urethane Duckbill Seats & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

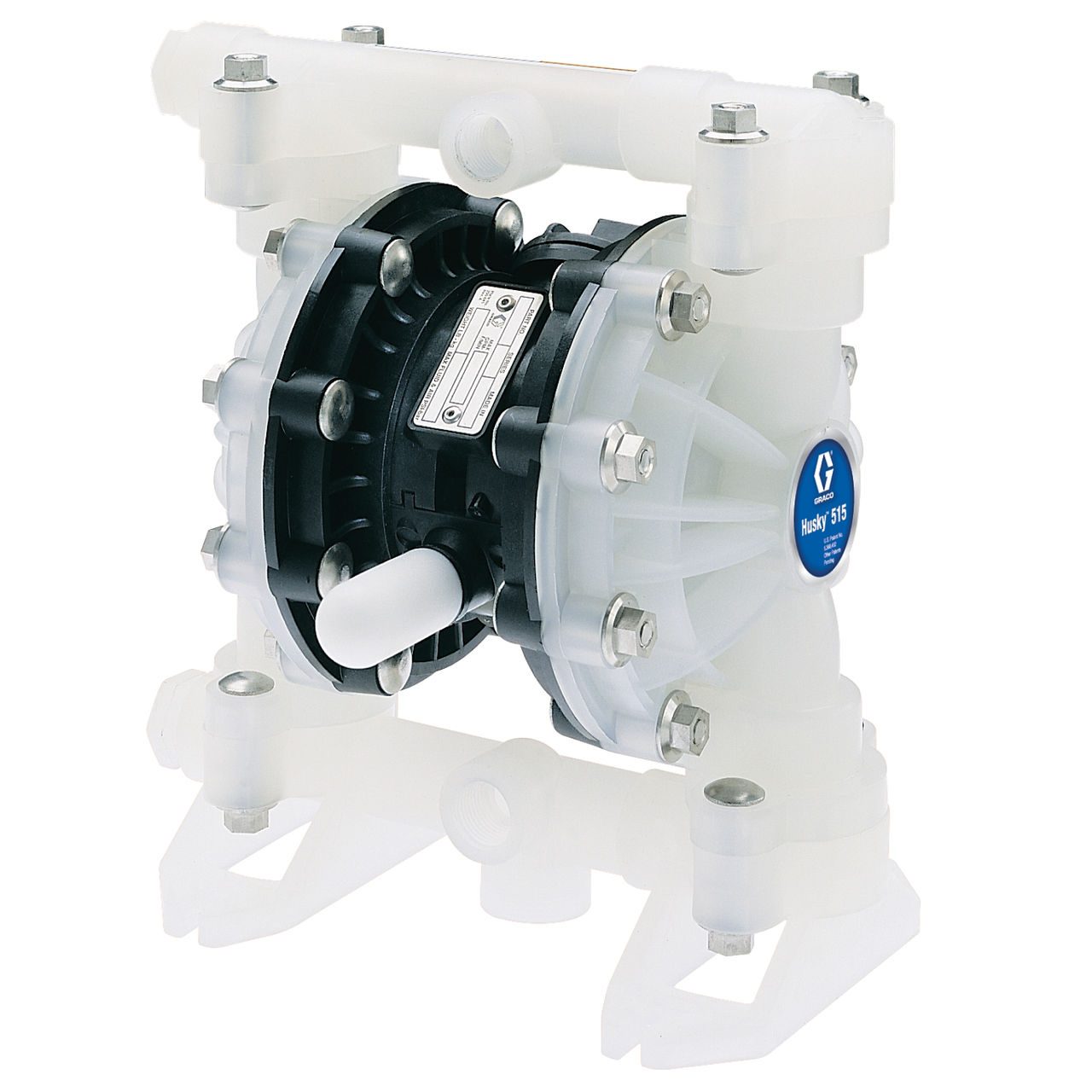

The Graco D52D01 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with a polypropylene pump housing and a polypropylene centre body. Its wetted configuration uses PTFE diaphragms and urethane duckbill check valves.
Graco D52D01 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: PTFE
- Check type: Urethane Duckbill
- Ball material: Not Applicable (Duckbill Check)
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 3.9 kg |
|---|---|
| Ball Material | Not Applicable (Duckbill Check) |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Seat Material | Urethane Duckbill |
| Port Size | 1/2 in |
| Pump Housing Material | Polypropylene |
