Graco D51277 1/2″ Diaphragm Pump
£943.00 ex VAT

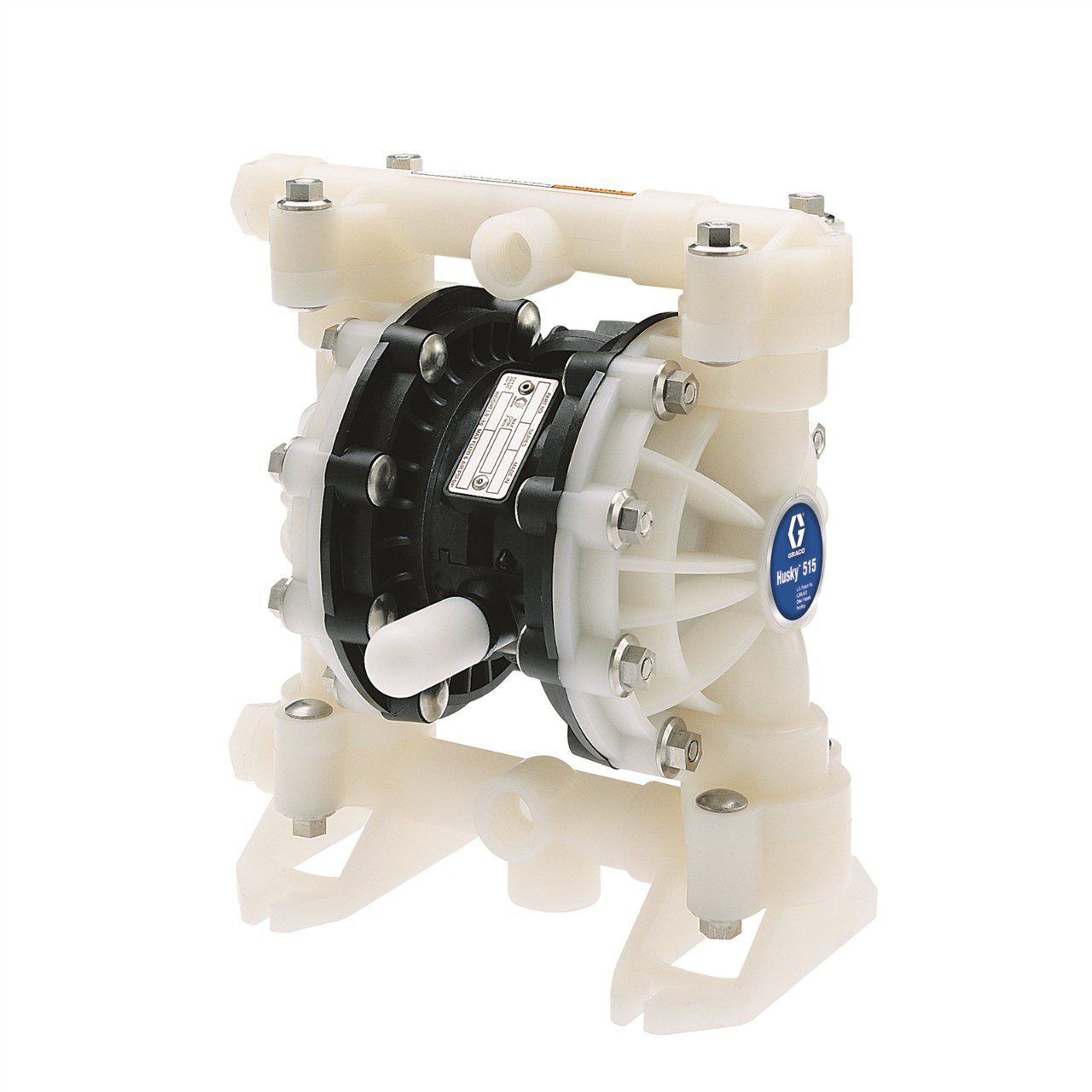

Graco D51277 Husky 515 AC 1/2 in NPT Standard Pump, PP Center Section, AC Seats, BN Balls & BN Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco D51277 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with an acetal pump housing, a polypropylene centre body, and NPT connections. Its wetted configuration uses Buna-N diaphragms, Buna-N balls, and acetal seats.
Graco D51277 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: NPT
- Pump housing: Acetal
- Centre body: Polypropylene
- Diaphragms: Buna-N
- Balls: Buna-N
- Seats: Acetal
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 4.38 kg |
|---|---|
| Ball Material | Buna-N |
| Centre Body Material | Polypropylene |
| Diaphragm Material | Buna-N |
| Seat Material | Acetal |
| Port Size | 1/2 in |
| Thread | NPT |
| Pump Housing Material | Acetal |
