Graco 654504 1-1/2″ Diaphragm Pump
£4,120.00 ex VAT
Graco 654504 Husky 15120 PP Pump, Center Flange, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

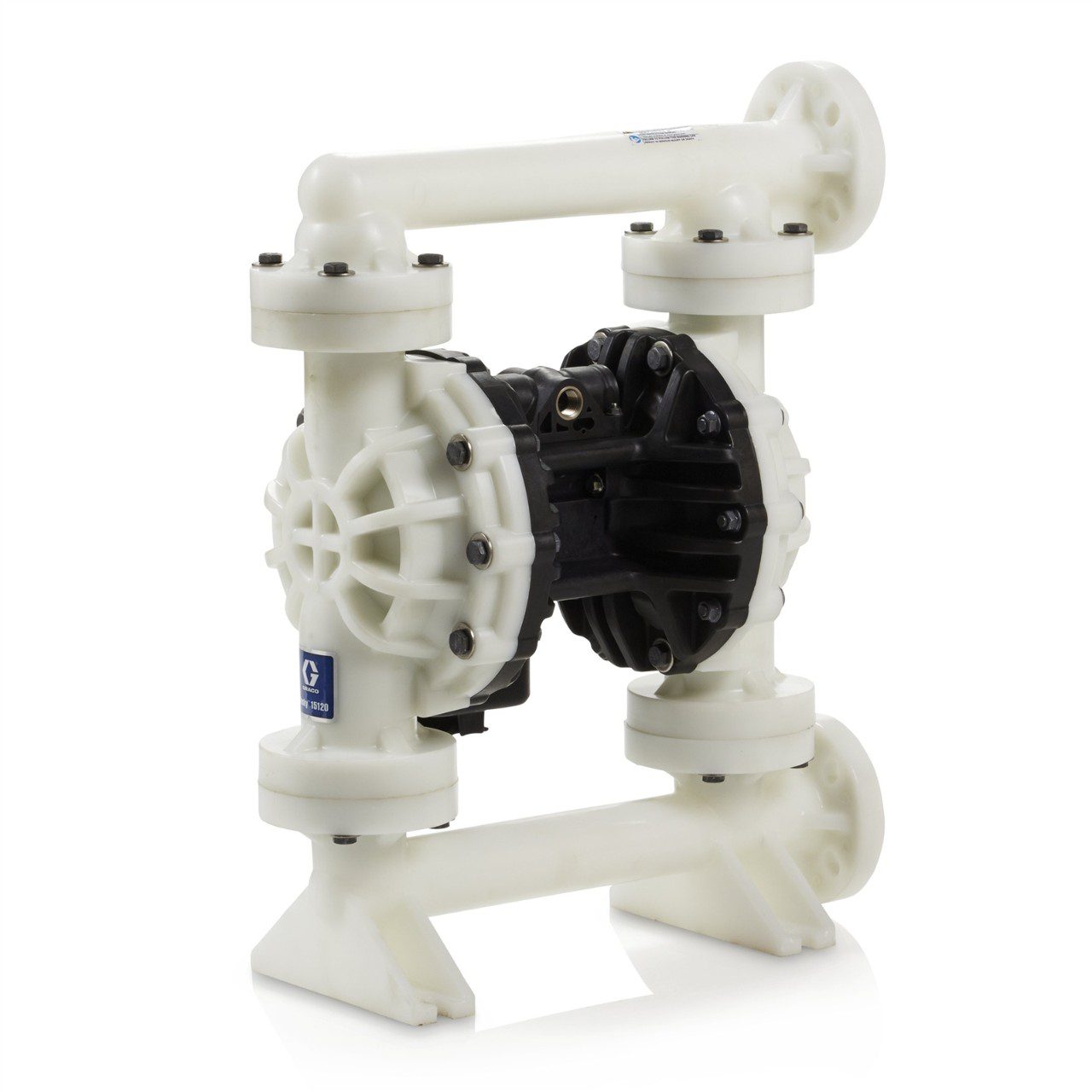

The Graco 654504 is a 1-1/2-inch Husky 15120 air-operated double-diaphragm pump configured with a polypropylene pump housing, a polypropylene centre body, and centre-flange connections. Its wetted configuration uses PTFE diaphragms, PTFE balls, and polypropylene seats.
Graco 654504 configuration
- Pump family: Graco Husky 15120
- Port size: 1-1/2 in
- Connection: Centre Flange
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: PTFE
- Balls: PTFE
- Seats: Polypropylene
Husky 15120 pump features
The Husky 15120 air-operated diaphragm pump features a stall-free, low-pulsation air valve that provides a smooth and rapid changeover. Its one-piece centre section eliminates leaks and reduces maintenance compared with other diaphragm pumps.
| Weight | 31.71 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Seat Material | Polypropylene |
| Port Size | 1-1/2 in |
| Thread | Center Flange |
| Pump Housing Material | Polypropylene |
