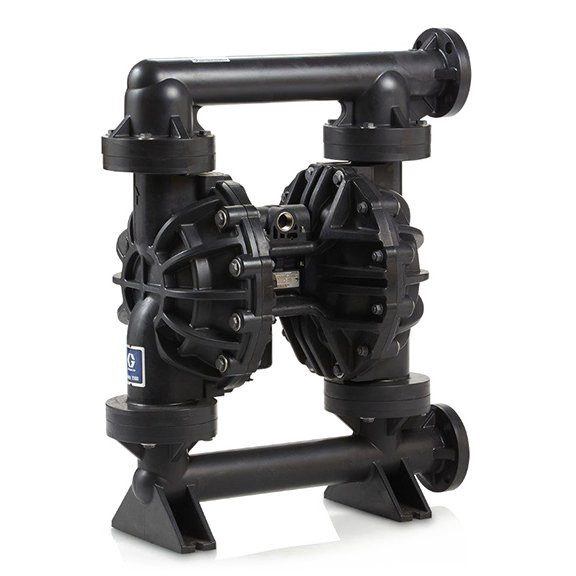

Graco 653547 2″ Diaphragm Pump
£11,470.00 ex VAT
Graco 653547 Husky 2200 PVDF Pump, PP Center Section, PVDF Seats, PTFE Balls & PO Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 653547 is a 2-inch Husky 2200 air-operated double-diaphragm pump configured with a PVDF pump housing and a polypropylene centre body. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, PTFE balls, and PVDF seats.
Graco 653547 configuration
- Pump family: Graco Husky 2200
- Port size: 2 in
- Pump housing: PVDF
- Centre body: Polypropylene
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: PTFE
- Seats: PVDF
Husky 2200 pump features
The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
| Weight | 60.7 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | PVDF |
| Port Size | 2 in |
| Pump Housing Material | PVDF |
