Graco 652890 3″ Diaphragm Pump
£13,106.00 ex VAT
Graco 652890 Husky 3300 (3 in. BSPT) SS Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

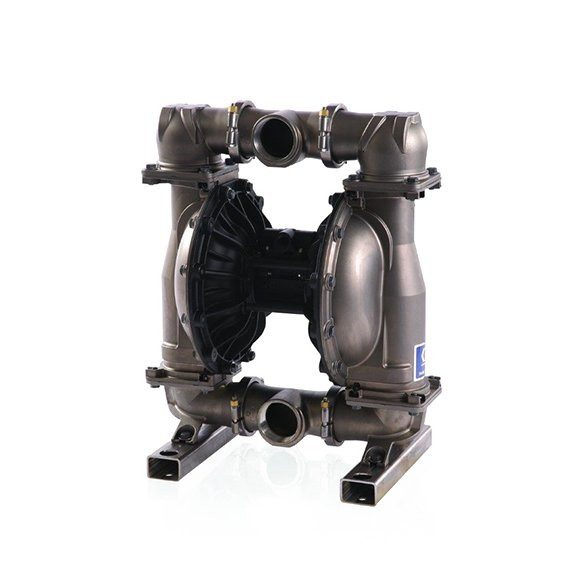

The Graco 652890 is a 3-inch Husky 3300 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and BSPT connections. Its wetted configuration uses Santoprene diaphragms, Santoprene balls, and Santoprene seats.
Graco 652890 configuration
- Pump family: Graco Husky 3300
- Port size: 3 in
- Connection: BSPT
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: Santoprene
Husky 3300 pump features
The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
| Weight | 127.75 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Aluminium |
| Diaphragm Material | Santoprene |
| Seat Material | Santoprene |
| Port Size | 3 in |
| Thread | BSPT |
| Pump Housing Material | 316 Stainless Steel |
