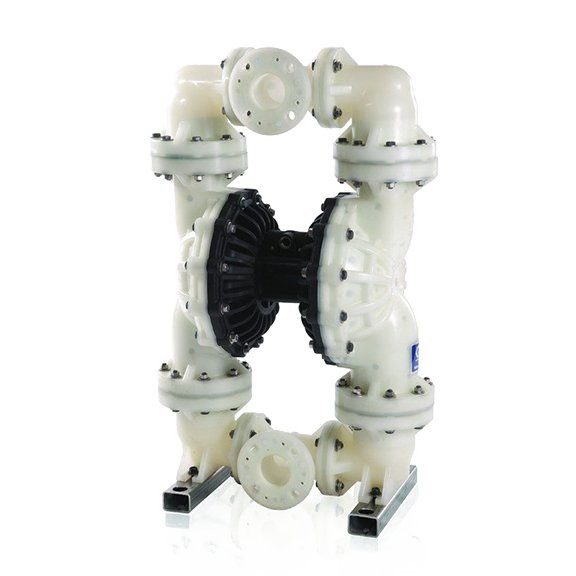

Graco 652400 3″ Diaphragm Pump
£8,110.00 ex VAT
Graco 652400 3″ Diaphragm Pump featuring Santoprene diaphragms, Polypropylene housing and Polypropylene centre body. Check the specification and product code before ordering.
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 652400 is a 3-inch Husky 3300 air-operated double-diaphragm pump configured with a polypropylene pump housing and a polypropylene centre body. Its wetted configuration uses Santoprene diaphragms, Santoprene balls, and polypropylene seats.
Graco 652400 configuration
- Pump family: Graco Husky 3300
- Port size: 3 in
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: Polypropylene
Husky 3300 pump features
The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
| Weight | 98.75 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Polypropylene |
| Diaphragm Material | Santoprene |
| Seat Material | Polypropylene |
| Port Size | 3 in |
| Pump Housing Material | Polypropylene |
