Graco 652021 3″ Diaphragm Pump
£5,544.00 ex VAT
Graco 652021 Husky 3300 (ANSI/DIN/NPT) AL Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

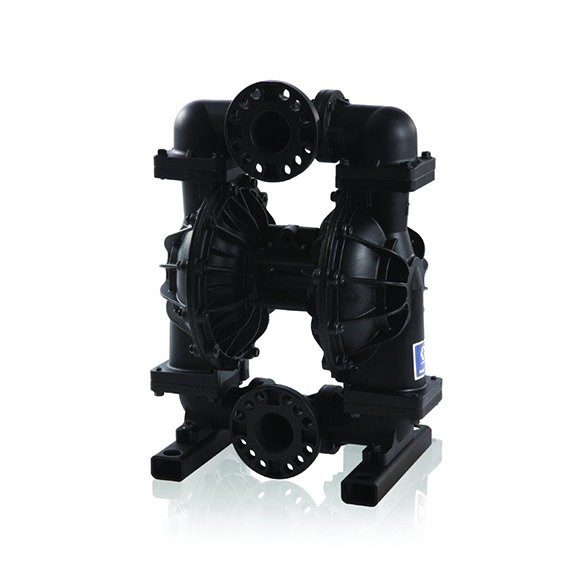

The Graco 652021 is a 3-inch Husky 3300 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and ANSI / DIN / NPT connections. Its wetted configuration uses PTFE diaphragms, PTFE balls, and 316 stainless steel seats.
Graco 652021 configuration
- Pump family: Graco Husky 3300
- Port size: 3 in
- Connection: ANSI / DIN / NPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: PTFE
- Balls: PTFE
- Seats: 316 Stainless Steel
Husky 3300 pump features
The Husky 3300 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on the Husky pumps when compared to other diaphragm pumps.
| Weight | 86.98 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 3 in |
| Thread | ANSI / DIN / NPT |
| Pump Housing Material | Aluminium |
