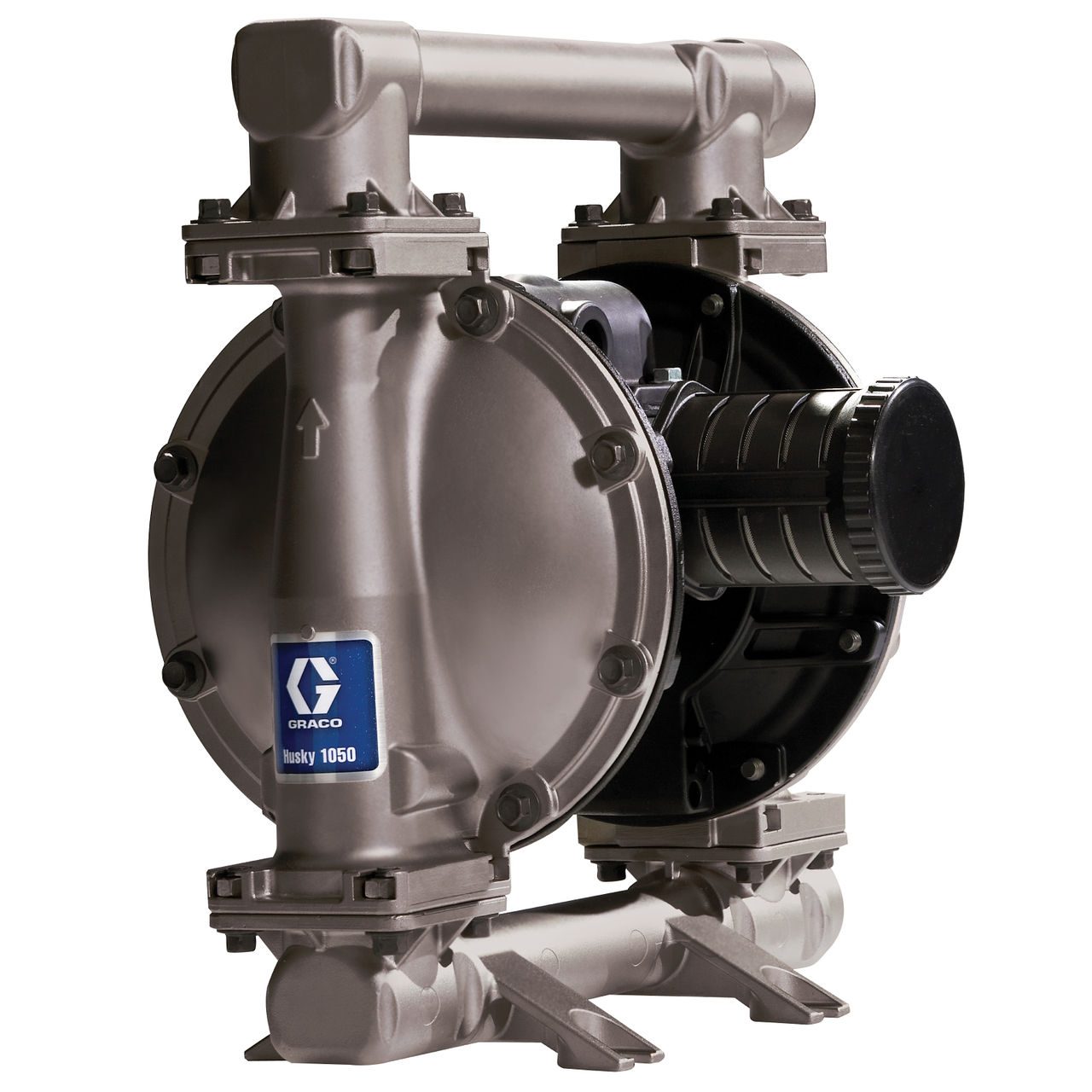

Graco 651310 1″ Diaphragm Pump
£4,325.00 ex VAT
Graco 651310 Husky 1050 SS 1 in. (25.4 mm) NPT Pump, Conductive PP Center Section, SP Seats, SP Balls & SP Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 651310 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, a conductive polypropylene centre body, and NPT connections. Its wetted configuration uses Santoprene diaphragms, Santoprene balls and Santoprene seats.
Graco 651310 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: NPT
- Pump housing: 316 Stainless Steel
- Centre body: Conductive Polypropylene
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: Santoprene
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 18.23 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Conductive Polypropylene |
| Diaphragm Material | Santoprene |
| Seat Material | Santoprene |
| Port Size | 1 in |
| Thread | NPT |
| Pump Housing Material | 316 Stainless Steel |
