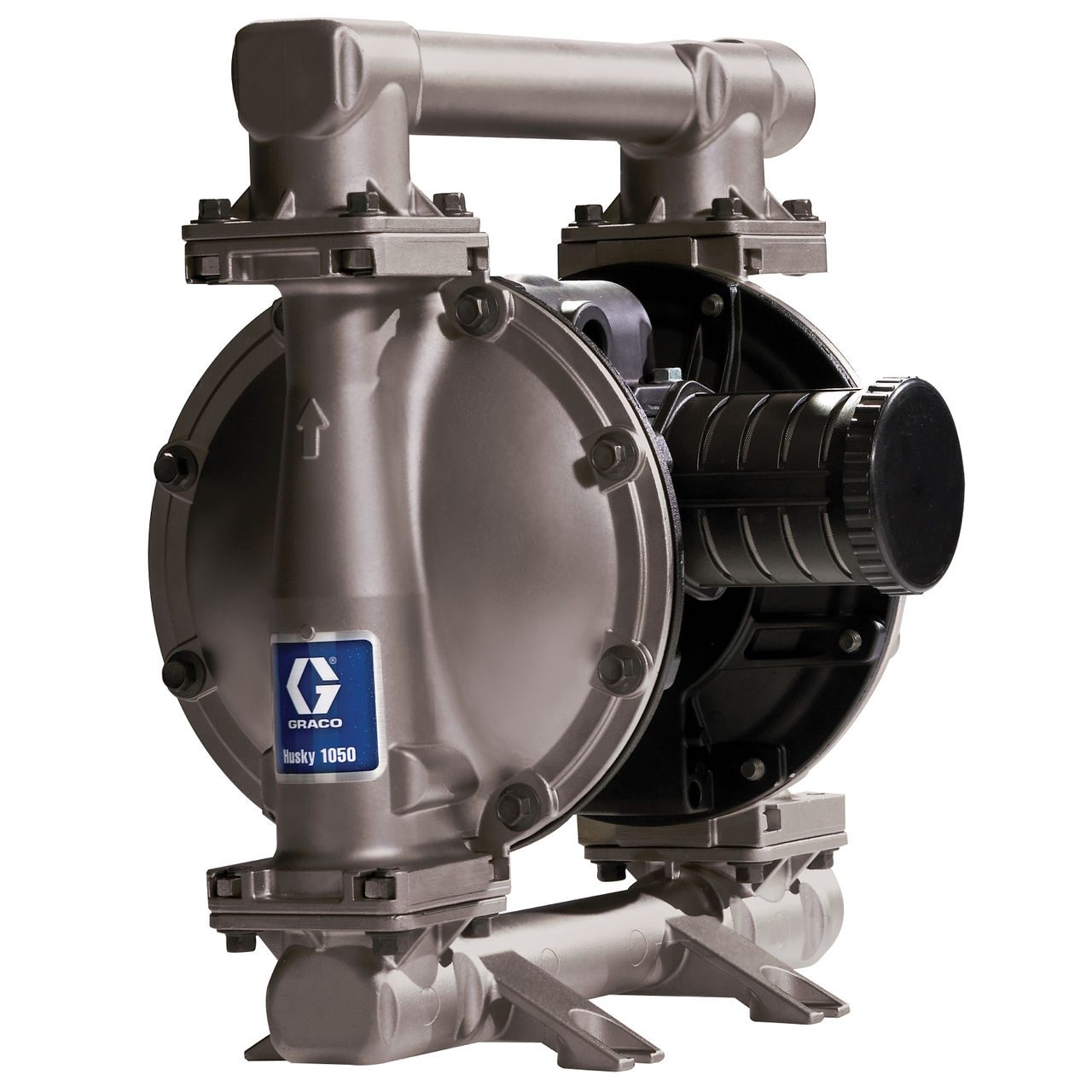

Graco 651037 1″ Diaphragm Pump
£2,541.00 ex VAT
Graco 651037 Husky 1050 SS 1 in. (25.4 mm) BSPT Pump, AL Center Section, SS Seats, BN Balls & BN Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 651037 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing, an aluminium centre body, and BSPT connections. Its wetted configuration uses Buna-N diaphragms, Buna-N balls and 316 stainless steel seats.
Graco 651037 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: BSPT
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: Buna-N
- Balls: Buna-N
- Seats: 316 Stainless Steel
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 19.87 kg |
|---|---|
| Ball Material | Buna-N |
| Centre Body Material | Aluminium |
| Diaphragm Material | Buna-N |
| Seat Material | 316 Stainless Steel |
| Port Size | 1 in |
| Thread | BSPT |
| Pump Housing Material | 316 Stainless Steel |
