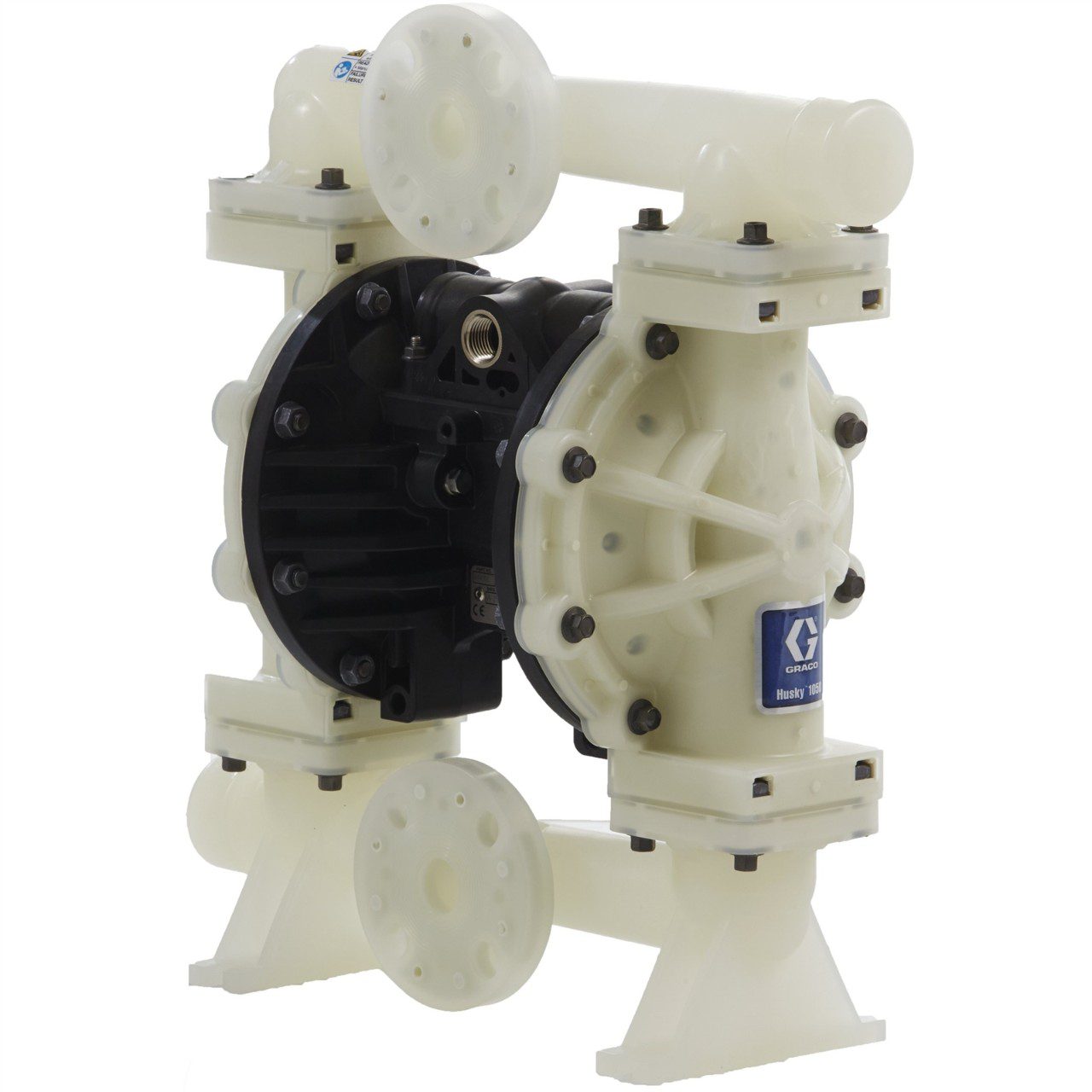

Graco 649398 1″ Diaphragm Pump
£2,788.00 ex VAT
Graco 649398 Husky 1050 PVDF Pump, End Flange, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 649398 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a PVDF pump housing, a polypropylene centre body, and End Flange connections. Its wetted configuration uses PTFE diaphragms, PTFE balls and PVDF seats.
Graco 649398 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: End Flange
- Pump housing: PVDF
- Centre body: Polypropylene
- Diaphragms: PTFE
- Balls: PTFE
- Seats: PVDF
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 13.4 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE |
| Seat Material | PVDF |
| Port Size | 1 in |
| Thread | End Flange |
| Pump Housing Material | PVDF |
