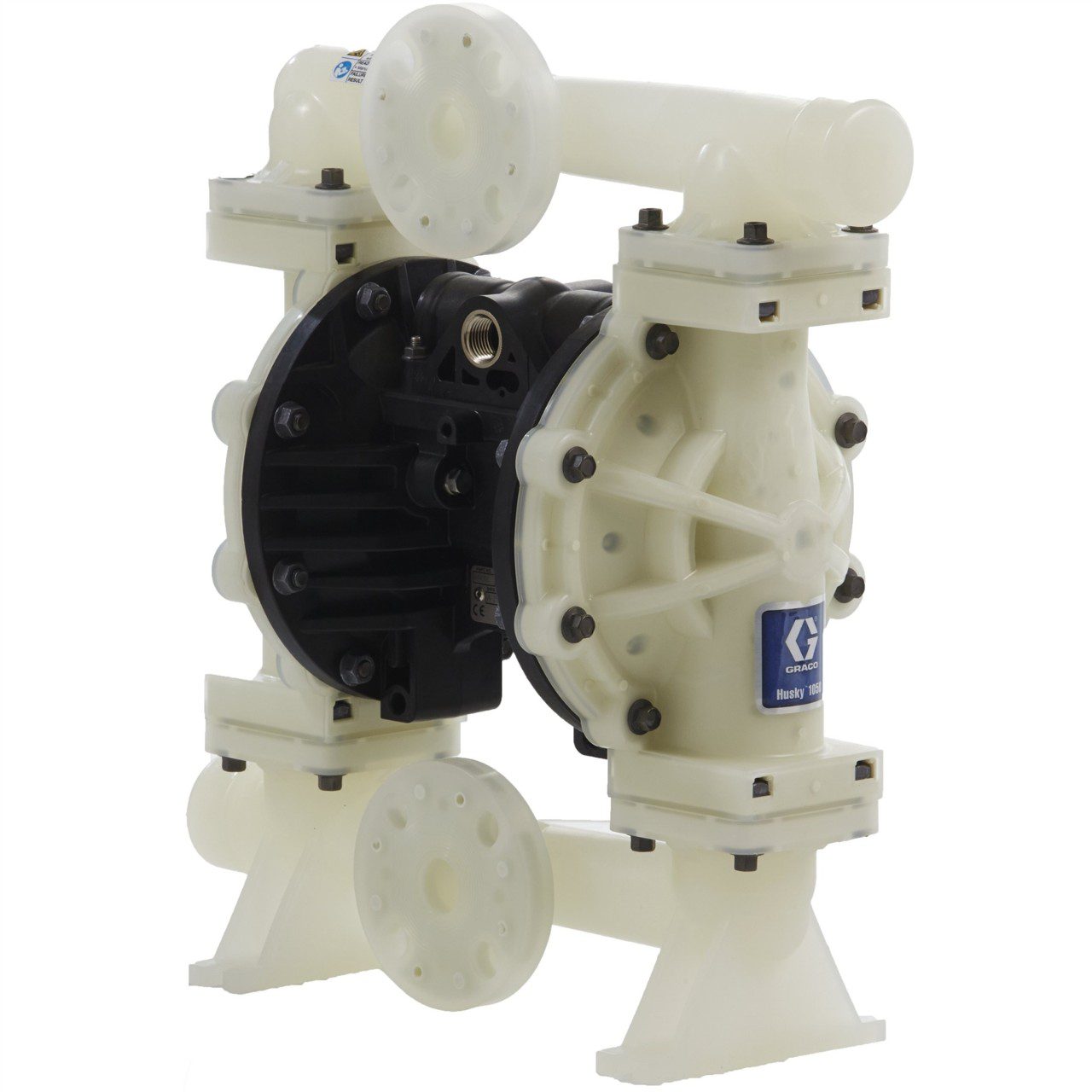

Graco 649186 1″ Diaphragm Pump
£2,277.00 ex VAT
Graco 649186 Husky 1050 Conductive PP Pump, Center Flange, Conductive PP Center Section, SS Seats, PTFE Balls & PTFE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 649186 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a conductive polypropylene pump housing, a conductive polypropylene centre body, and Center Flange connections. Its wetted configuration uses PTFE diaphragms, PTFE balls and 316 stainless steel seats.
Graco 649186 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: Center Flange
- Pump housing: Conductive Polypropylene
- Centre body: Conductive Polypropylene
- Diaphragms: PTFE
- Balls: PTFE
- Seats: 316 Stainless Steel
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 10.65 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Conductive Polypropylene |
| Diaphragm Material | PTFE |
| Seat Material | 316 Stainless Steel |
| Port Size | 1 in |
| Thread | Center Flange |
| Pump Housing Material | Conductive Polypropylene |
