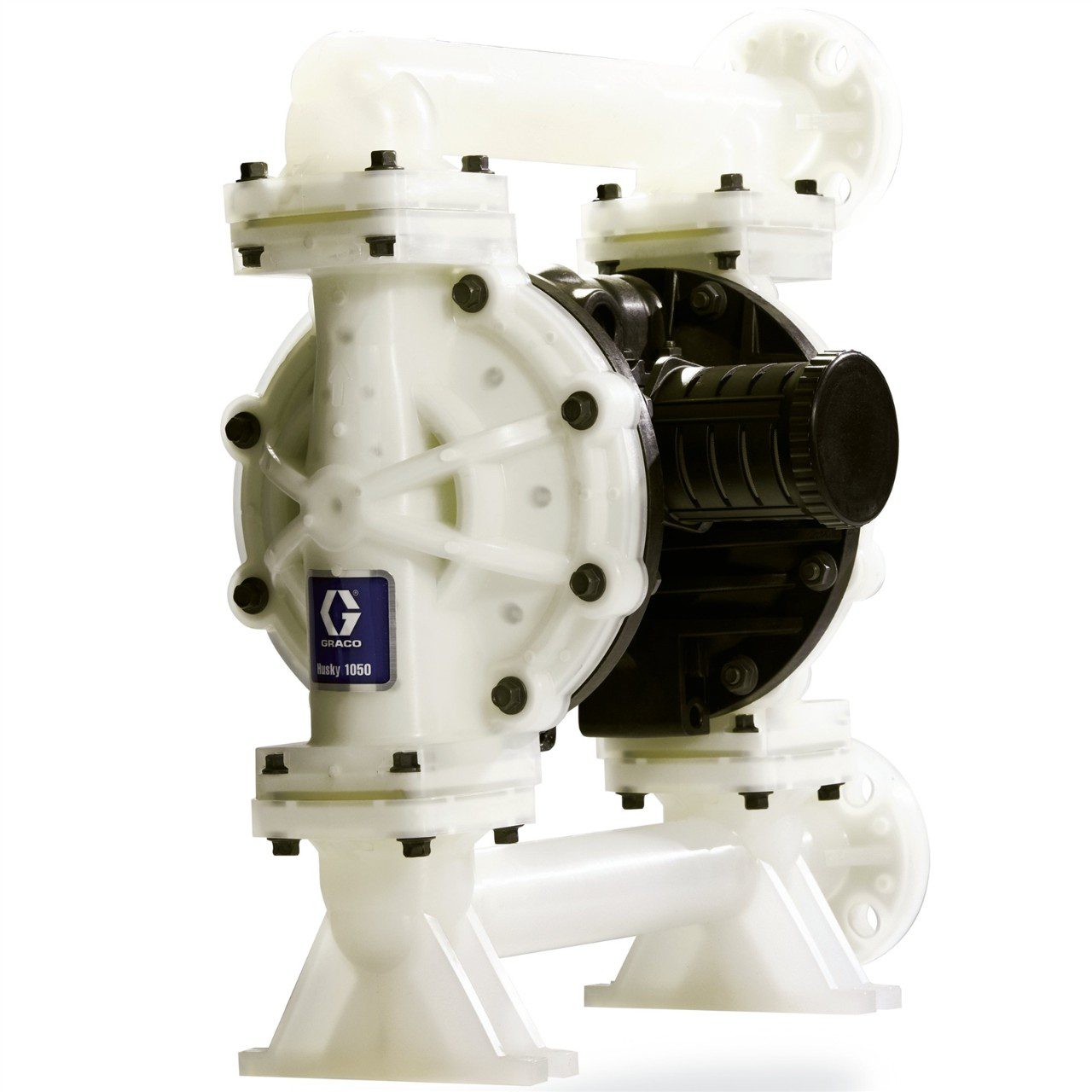

Graco 649029 1″ Diaphragm Pump
£1,618.00 ex VAT
Graco 649029 Husky 1050 PP (NPT) Pump, End Flange, PP Center Section, PP Seats, SP Balls & SP Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 649029 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a polypropylene pump housing, a polypropylene centre body, and NPT connections. Its wetted configuration uses Santoprene diaphragms, Santoprene balls and polypropylene seats.
Graco 649029 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: NPT
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: Santoprene
- Balls: Santoprene
- Seats: Polypropylene
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 9.52 kg |
|---|---|
| Ball Material | Santoprene |
| Centre Body Material | Polypropylene |
| Diaphragm Material | Santoprene |
| Seat Material | Polypropylene |
| Port Size | 1 in |
| Thread | NPT |
| Pump Housing Material | Polypropylene |
