Graco 647040 1″ Diaphragm Pump
£1,112.00 ex VAT

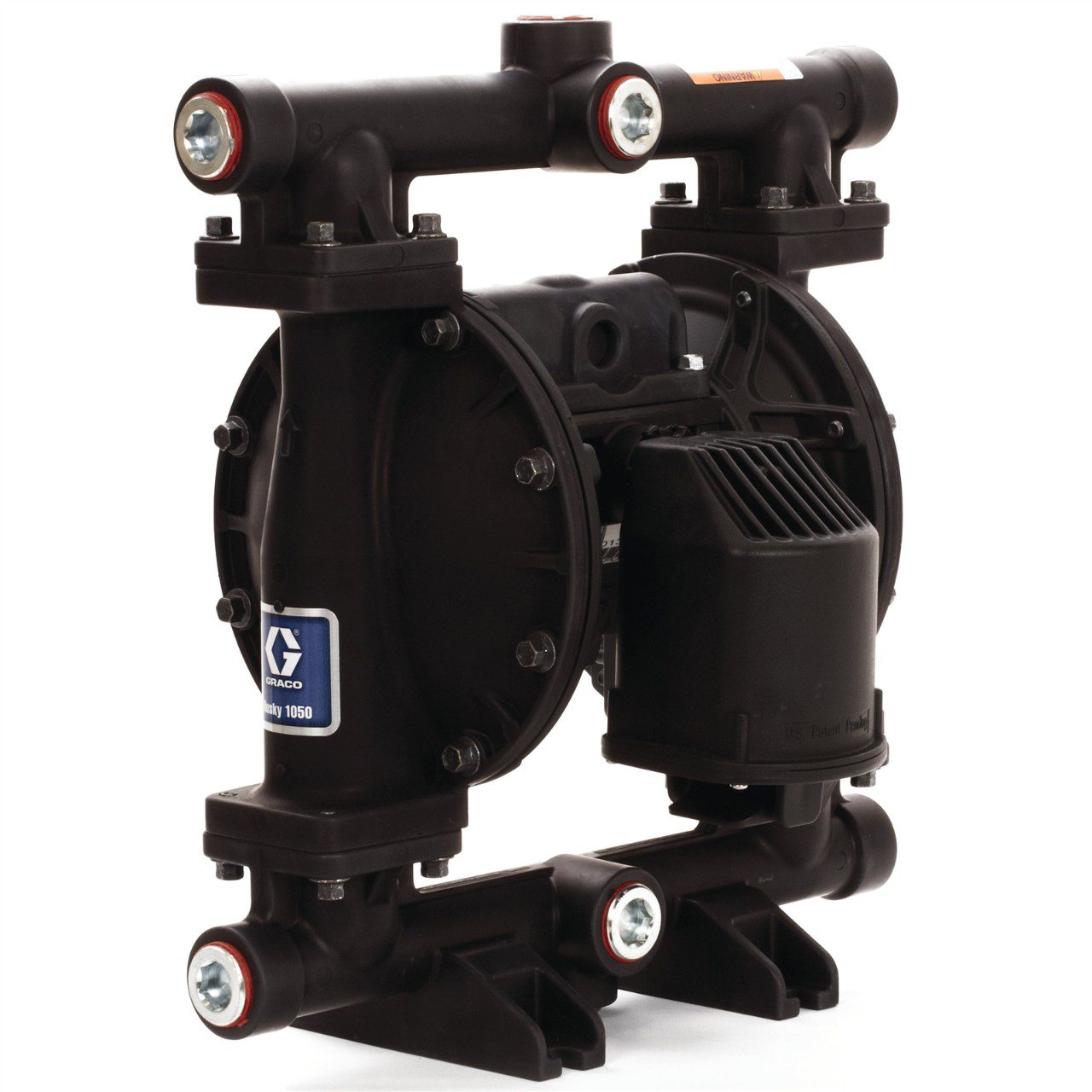

Graco 647040 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section with BN Seals, GE Seats, GE Balls & GE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 647040 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses Graco Engineered Thermoplastic diaphragms, Graco Engineered Thermoplastic balls and Graco Engineered Thermoplastic seats.
Graco 647040 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: NPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: Graco Engineered Thermoplastic
- Balls: Graco Engineered Thermoplastic
- Seats: Graco Engineered Thermoplastic
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 11.8 kg |
|---|---|
| Ball Material | Graco Engineered Thermoplastic |
| Centre Body Material | Aluminium |
| Diaphragm Material | Graco Engineered Thermoplastic |
| Seat Material | Graco Engineered Thermoplastic |
| Port Size | 1 in |
| Thread | NPT |
| Pump Housing Material | Aluminium |
