Graco 24N093 1/2″ Diaphragm Pump
£1,305.00 ex VAT
Graco 24N093 Husky 515 1/2 in NPT PP Pump, PP Center Section, PP Seats, PTFE Balls & PO Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.

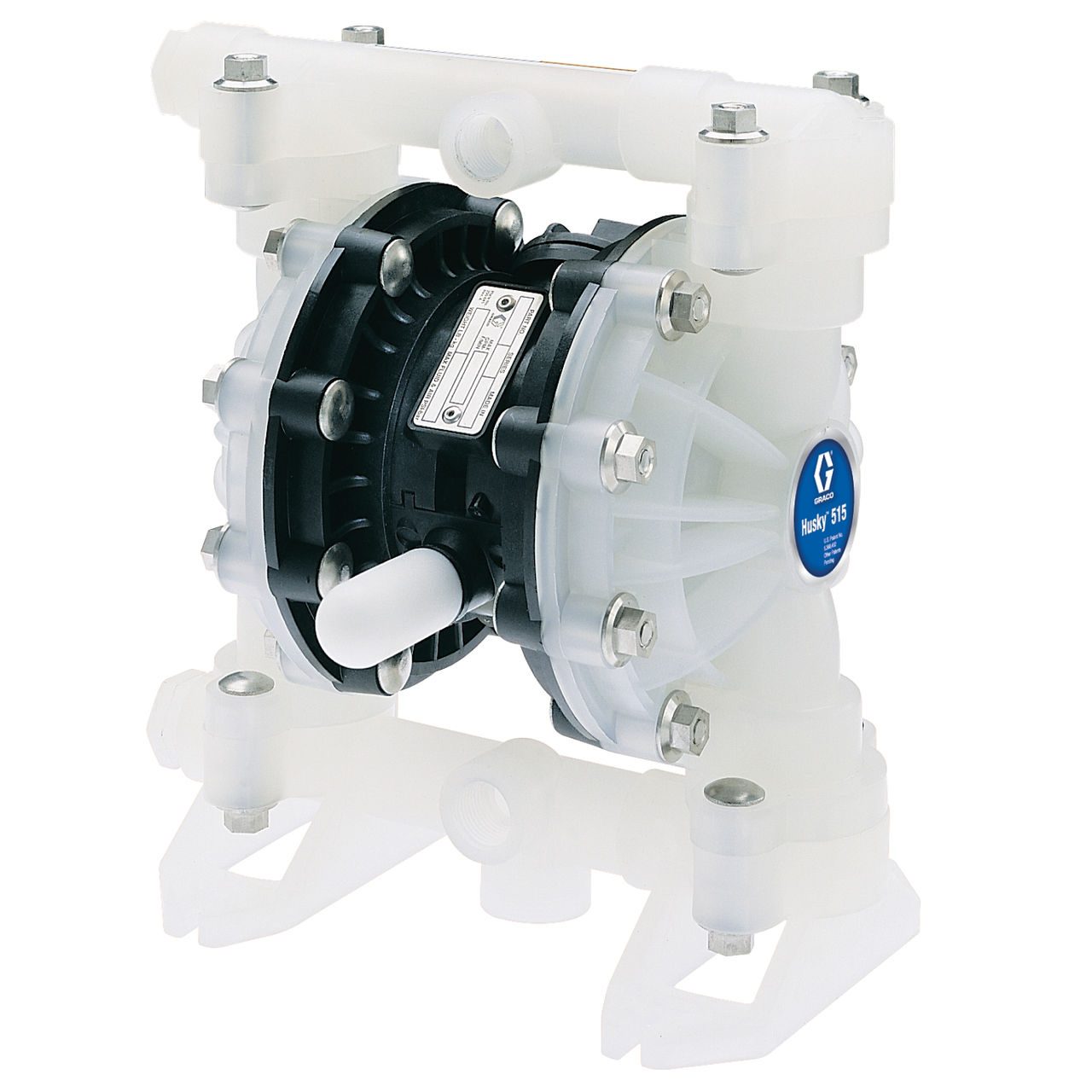

The Graco 24N093 is a 1/2-inch Husky 515 air-operated double-diaphragm pump configured with a polypropylene pump housing, a polypropylene centre body, and NPT connections. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, PTFE balls, and polypropylene seats.
Graco 24N093 configuration
- Pump family: Graco Husky 515
- Port size: 1/2 in
- Connection: NPT
- Pump housing: Polypropylene
- Centre body: Polypropylene
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: PTFE
- Seats: Polypropylene
Husky 515 pump features
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
| Weight | 3.62 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Polypropylene |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | Polypropylene |
| Port Size | 1/2 in |
| Thread | NPT |
| Pump Housing Material | Polypropylene |
