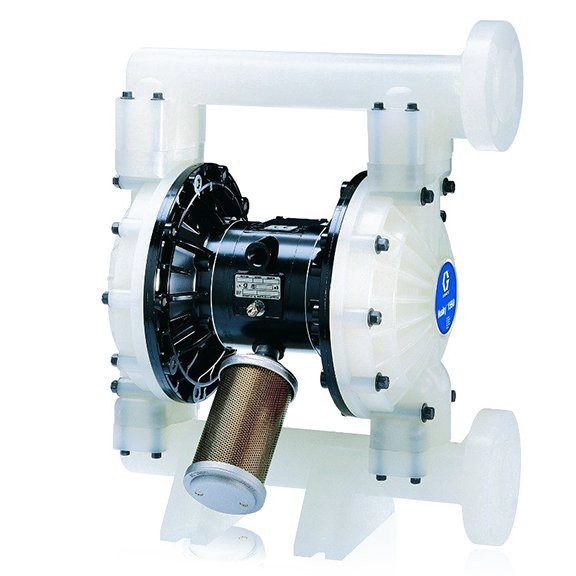

Graco 24B760 1-1/2″ Diaphragm Pump
£3,775.00 ex VAT
Graco 24B760 1-1/2″ Diaphragm Pump featuring PTFE/EPDM Overmoulded diaphragms, Polypropylene housing and Aluminium centre body. Check the specification and product code before ordering.
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 24B760 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a polypropylene pump housing and an aluminium centre body. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, PTFE balls, and polypropylene seats.
Graco 24B760 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Pump housing: Polypropylene
- Centre body: Aluminium
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: PTFE
- Seats: Polypropylene
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 18.12 kg |
|---|---|
| Ball Material | PTFE |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | Polypropylene |
| Port Size | 1-1/2 in |
| Pump Housing Material | Polypropylene |
