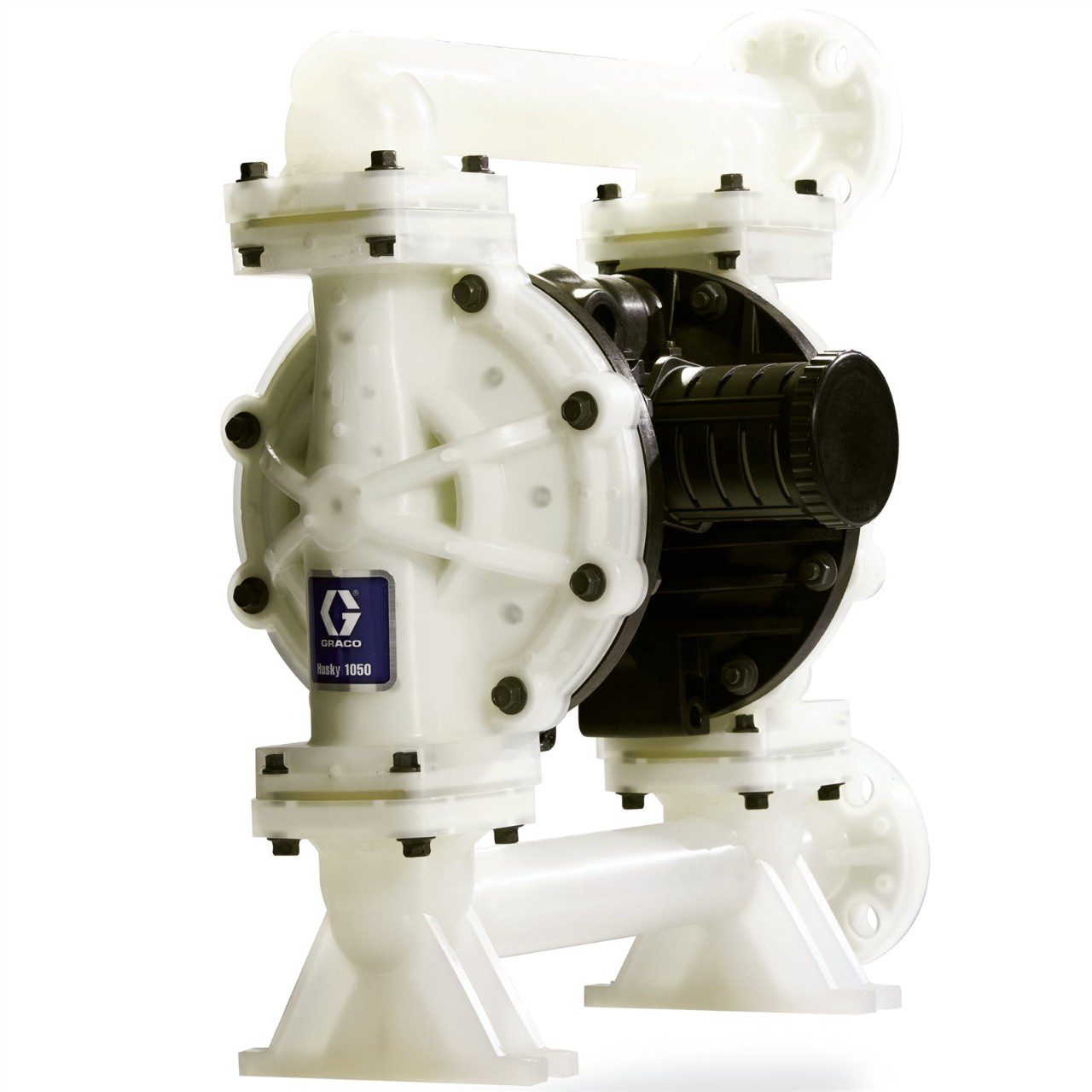

Graco 649223 1″ Diaphragm Pump
£1,778.00 ex VAT
Graco 649223 Husky 1050 Conductive PP Pump, End Flange, Conductive PP Center Section, BN Seats, BN Balls & BN Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 649223 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with a conductive polypropylene pump housing, a conductive polypropylene centre body, and End Flange connections. Its wetted configuration uses Buna-N diaphragms, Buna-N balls and Buna-N seats.
Graco 649223 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: End Flange
- Pump housing: Conductive Polypropylene
- Centre body: Conductive Polypropylene
- Diaphragms: Buna-N
- Balls: Buna-N
- Seats: Buna-N
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 9.97 kg |
|---|---|
| Ball Material | Buna-N |
| Centre Body Material | Conductive Polypropylene |
| Diaphragm Material | Buna-N |
| Seat Material | Buna-N |
| Port Size | 1 in |
| Thread | End Flange |
| Pump Housing Material | Conductive Polypropylene |
