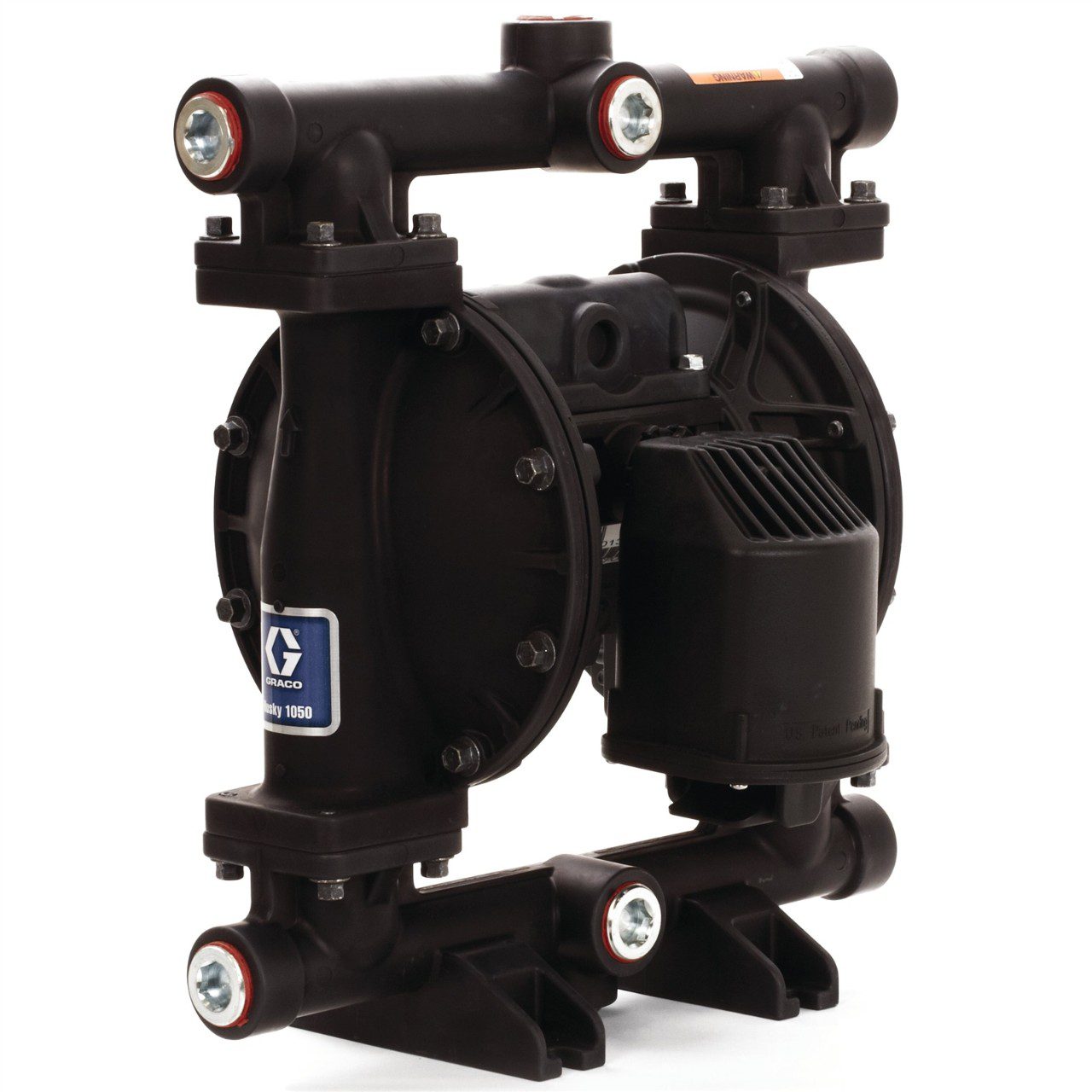

Graco 647100 1″ Diaphragm Pump
£1,558.00 ex VAT
Graco 647100 Husky 1050 AL 1 in. (25.4 mm) BSPT Pump, AL Center Section, SS Seats, SS Balls & SP Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 647100 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and BSPT connections. Its wetted configuration uses Santoprene diaphragms, 316 stainless steel balls and 316 stainless steel seats.
Graco 647100 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: BSPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: Santoprene
- Balls: 316 Stainless Steel
- Seats: 316 Stainless Steel
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 12.69 kg |
|---|---|
| Ball Material | 316 Stainless Steel |
| Centre Body Material | Aluminium |
| Diaphragm Material | Santoprene |
| Seat Material | 316 Stainless Steel |
| Port Size | 1 in |
| Thread | BSPT |
| Pump Housing Material | Aluminium |
