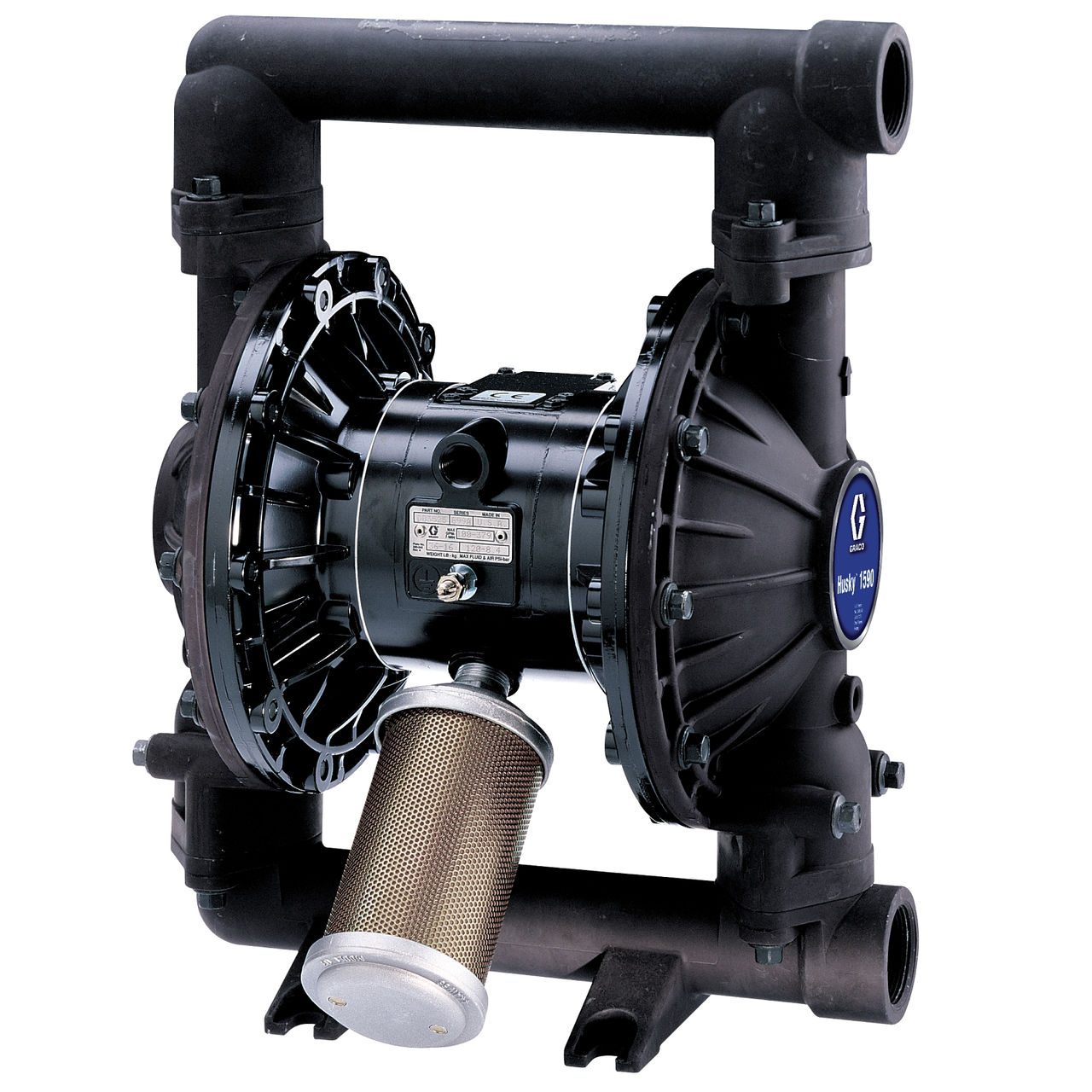

Graco 25A017 1-1/2″ Diaphragm Pump
£2,441.00 ex VAT
Graco 25A017 1-1/2″ Diaphragm Pump featuring PTFE/EPDM Overmoulded diaphragms, Aluminium housing and Aluminium centre body. Check the specification and product code before ordering.
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 25A017 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with an aluminium pump housing and an aluminium centre body. Its wetted configuration uses PTFE/EPDM overmoulded diaphragms, 316 stainless steel balls, and 316 stainless steel seats.
Graco 25A017 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: PTFE/EPDM Overmoulded
- Balls: 316 Stainless Steel
- Seats: 316 Stainless Steel
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 20.64 kg |
|---|---|
| Ball Material | 316 Stainless Steel |
| Centre Body Material | Aluminium |
| Diaphragm Material | PTFE/EPDM Overmoulded |
| Seat Material | 316 Stainless Steel |
| Port Size | 1-1/2 in |
| Pump Housing Material | Aluminium |
