PH15F-BSP-STT-A, PH20F-BSP-STT-B

PH20F-BSP-STT-B

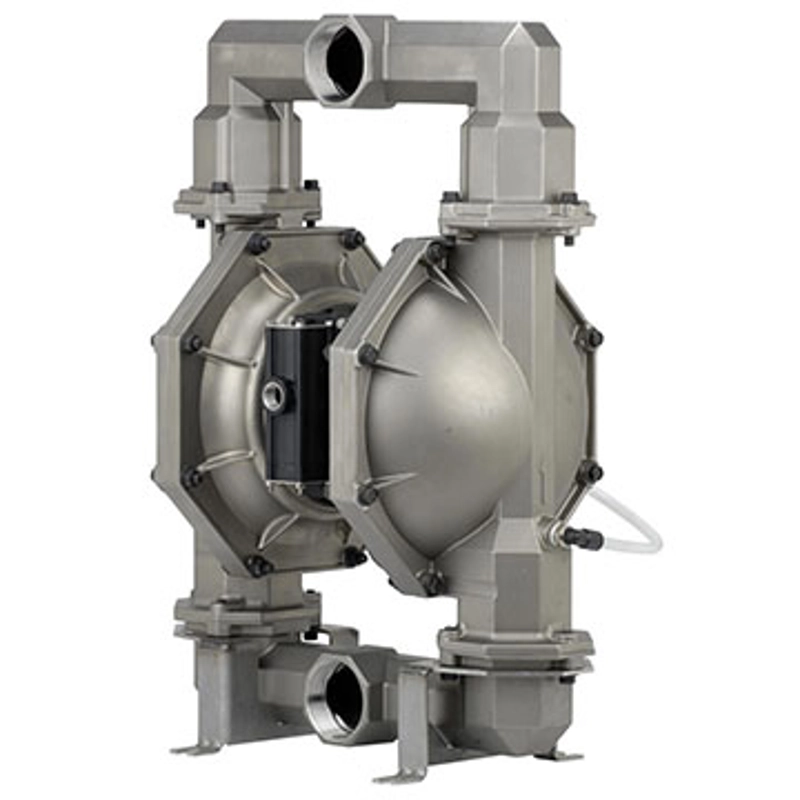

2:1 Ratio High Pressure Pump

PH20F-BSP-STT-B

The ARO high pressure air diaphragm pump was developed for applications requiring fluid pressures in excess of the 100 psi allowed by traditional pumps. Compared to a standard diaphragm pump, our 2:1 ratio high pressure diaphragm pump can produce up to 200 psi at about half the flow rate.

The 2:1 ratio is accomplished by using the effective surface area of both diaphragms to double the output pressure.

SKU: ARO-PH20F-BSP-STT-B Categories: , Brand:

£9,900.00

Visa
Stripe
MasterCard
Enquire Here

2:1 Ratio High Pressure Pump

PH20F-BSP-STT-B

Features

  • Utilizing Power – Can produce up to 200 psi, at about half the flow rate of a standard diaphragm pump. Our high pressure air operated diaphragm pump utilizes the effective surface areas of both diaphragms to double output pressure.
  • Structural Integrity – Bolted construction eliminates problems associated with leaking band-clamps while also reducing maintenance costs.
  • Simul-Shift™ and Quick Dump™ valve technology for stall free and ice free operation
  • Intelligent Design – Modular major valve design for easy repair and maintenance
  • Built to Last – Convoluted diaphragms for long life
  • Size – Available in 3″, 2″ and 1.5″ port sizes
Weight69.9 kg
Thread

BSP

Size

2''

Centre

Polypropylene

Diaphragm

PTFE

Balls

PTFE

Seats

Stainless Steel

Hardware

Plated Steel

Wetted Side

Stainless Steel
