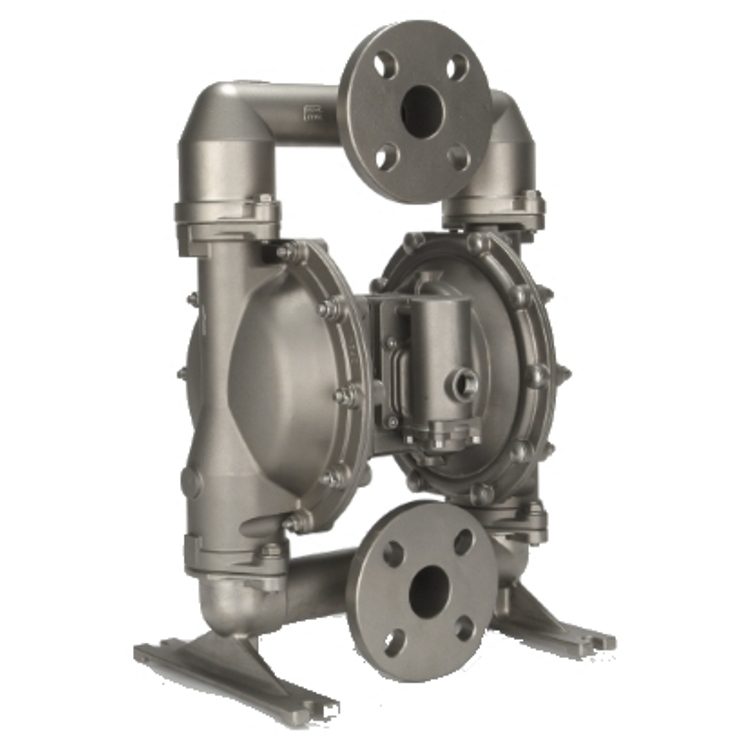

PD15S-YHS-LTT

PD15S-YHS-LTT

ARO 1-1/2” metallic diaphragm pumps achieve flow rates up to 123.1 GPM (465.9 LPM) and offer a wide array of material and porting configurations.
These pumps are often used for transfer, filling, recirculation and batching in Paint, Oil & Gas, Chemical and Petrochemical markets.

Available with Long-life PTFE diaphragms.

Benefits
The Ultimate in heavy duty pump design.
The new EXP is 20-40% more efficient than our competitors.
• Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal
• Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
• Versatility – Broad range in materials of construction for optimum fluid compatibility
• Environmentally Sound – Bolted construction for leak-free fluid handling
• Serviceability – Ease of service through modular design

Accessories
• 66084-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
• 67237 Diaphragm Failure Detection (DFD)
• 67350 Cycle Counter Kit
• 67174-15 Screened Inlet Adapter Kit
• 637389 Air Section Service Kit
• 637375-XX Fluid Section Service Kit

Weight	40.4 kg
Size	1-1/2''
Centre	Stainless Steel
Hardware	Stainless Steel
Thread	Centre Flanged
Wetted	Hastelloy
Diaphragm	PTFE
Ball	PTFE
Seat	Hastelloy
Air Kit	637389
Wet Kit	637375-TT

Ratio: 1:1 Maximum GPM (LPM): 123 (465) Displacement per cycle Gallons (Liters): 0.617 (2.34) Air Inlet (Female): 1/2 - 14 N.P.T. Fluid Inlet/Outlet: 1-1/2” - 11-1/2 N.P.T.F.-1, Rp1-1/2(1-1/2-11BSP) 1-1/2” A.N.S.I./DIN flange Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in.(mm): 1/4” (6.4) Weight lbs (kg): PX15R-XAX-XXX 37.7 (17.1) PX15R-XCX-XXX 73.2 (33.2) PX15R-XSX-XXX 61.2 (27.8) PX15R-XHX-XXX 86.9 (39.4) Note: add 2.14 lbs (0.97 kg) for aluminum air motor section add 18.14 lbs (8.23 kg) for stainless steel air motor section. Maximum dry suction lift ft(m): 14 (4.2) Sound Level: 70 PSI 50 Cycles/Min 81.0 db(A) Muffler Included: 350-568
