PD07R-BAS-FCC

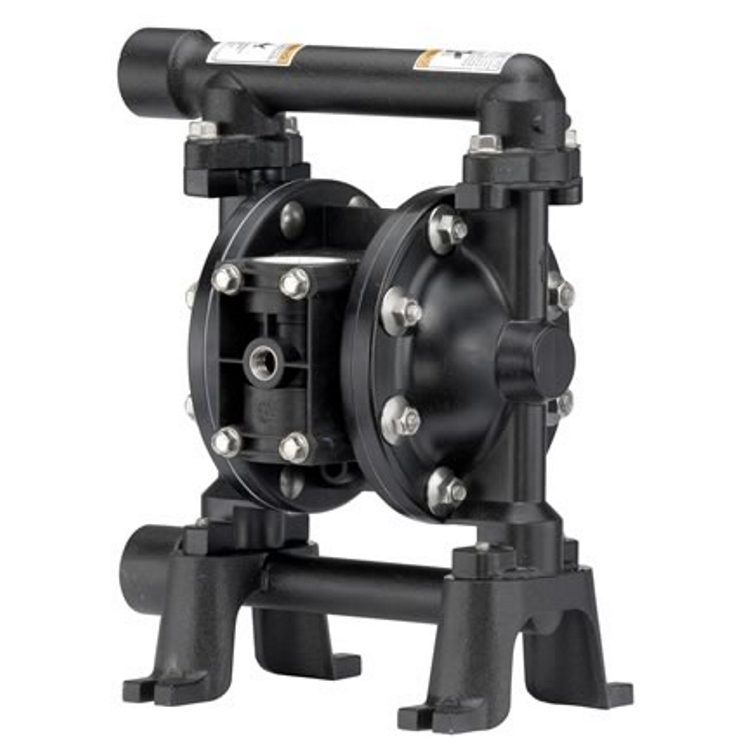

3/4” Metallic Diaphragm Pump
PD07R-BAS-FCC

Maximum Flow gpm (l/min): 13.6 (51.5)
Maximum Discharge Pressure psi (bar): 100 (6.9)
Fluid Ports Inlet/Outlet (bsp): 3/4 – 14 N.P.T.F.-1Rp 3/4 (3/4-14 BSP, parallel)
Material of Construction: Aluminium
Maximum Solids in (mm): 3/32 (2.4)
Maximum Dry Suction Lift ft (m): 15 (4.5)

SKU: ARO-PD07R-BAS-FCC Categories: , , Tags: , , Brand:

Enquire Here

PD07R-BAS-FCC

Part of our Compact Series of pumps our 3/4” metallic pumps feature big performance in a small package. They achieve flow rates up to 14.8 GPM (56LPM) and offer a wide range of material and porting configurations.

Available with Long-life PTFE diaphragms.

Features
• Designed to meet your OEM application needs.
• Manufactured for complete corrosion resistance – constructed with polypropylene center body, standard stainless steel fasteners, and your choice of Groundable Acetal, PVDF (Kynar) or Polypropylene casing materials
• Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal
• Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
• Versatility – Compact design enables usage in limited space and other versatile locations
• Environmentally Sound – Bolted construction for leak-free fluid handling
• Serviceability – Ease of service through modular design

Accessories
• 66073-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
• 637438 Threaded Exhaust Kit
• 76763 Wall Mount Bracket
• 93110 Air Motor Muffler
• 637428 Air Section Service Kit
• 637427-XX Fluid Section Service Kit

Weight 3.96 kg
Size

Centre

Hardware

Thread

Wetted

Diaphragm

Ball

Seat

Air Kit

Wet Kit

Ratio: 1:1 Maximum Flow: 13.6-g.p.m. (51.5-l.p.m.) Displacement per cycle: 0.030-Gallons (0.11-Liters) Air Inlet: (Female) 1/4 - 18 P.T.F. SAE Short Fluid Inlet/Outlet: 3/4 - 14 N.P.T.F.-2 Rp 3/4(3/4 -14 BSP, parallel) Max. operating pressure: 100-psi (6.9-bar) Suspended solids max. dia.: 3/32” (2.4-mm) Weight: lbs (kg) PX07R 8.74 (3.96) PX07A 11.0 (4.99) Maximum dry suction lift: ft (m) 15 (4.5) Sound Level: 70 PSI 60 Cycles/Min 75 db(A)
