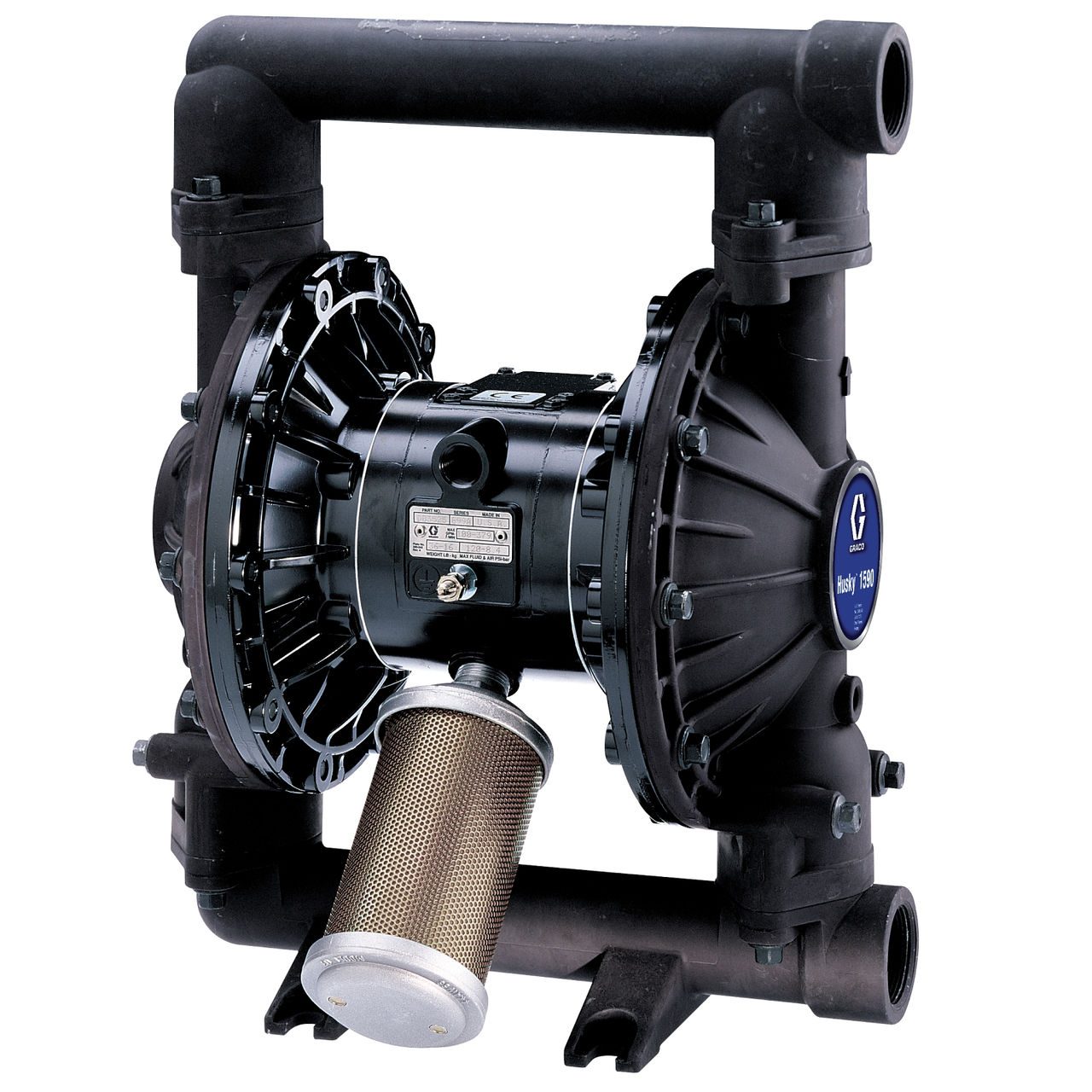

Graco DBD888 1-1/2″ Diaphragm Pump
£4,913.00 ex VAT
Graco DBD888 Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, FKM Seat, Ball & Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco DBD888 is a 1-1/2-inch Husky 1590 air-operated double-diaphragm pump configured with a 316 stainless steel pump housing and an aluminium centre body. Its wetted configuration uses FKM diaphragms, FKM balls, and FKM seats.
Graco DBD888 configuration
- Pump family: Graco Husky 1590
- Port size: 1-1/2 in
- Pump housing: 316 Stainless Steel
- Centre body: Aluminium
- Diaphragms: FKM
- Balls: FKM
- Seats: FKM
Husky 1590 pump features
The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.
| Weight | 42.58 kg |
|---|---|
| Ball Material | FKM |
| Centre Body Material | Aluminium |
| Diaphragm Material | FKM |
| Seat Material | FKM |
| Port Size | 1-1/2 in |
| Pump Housing Material | 316 Stainless Steel |
