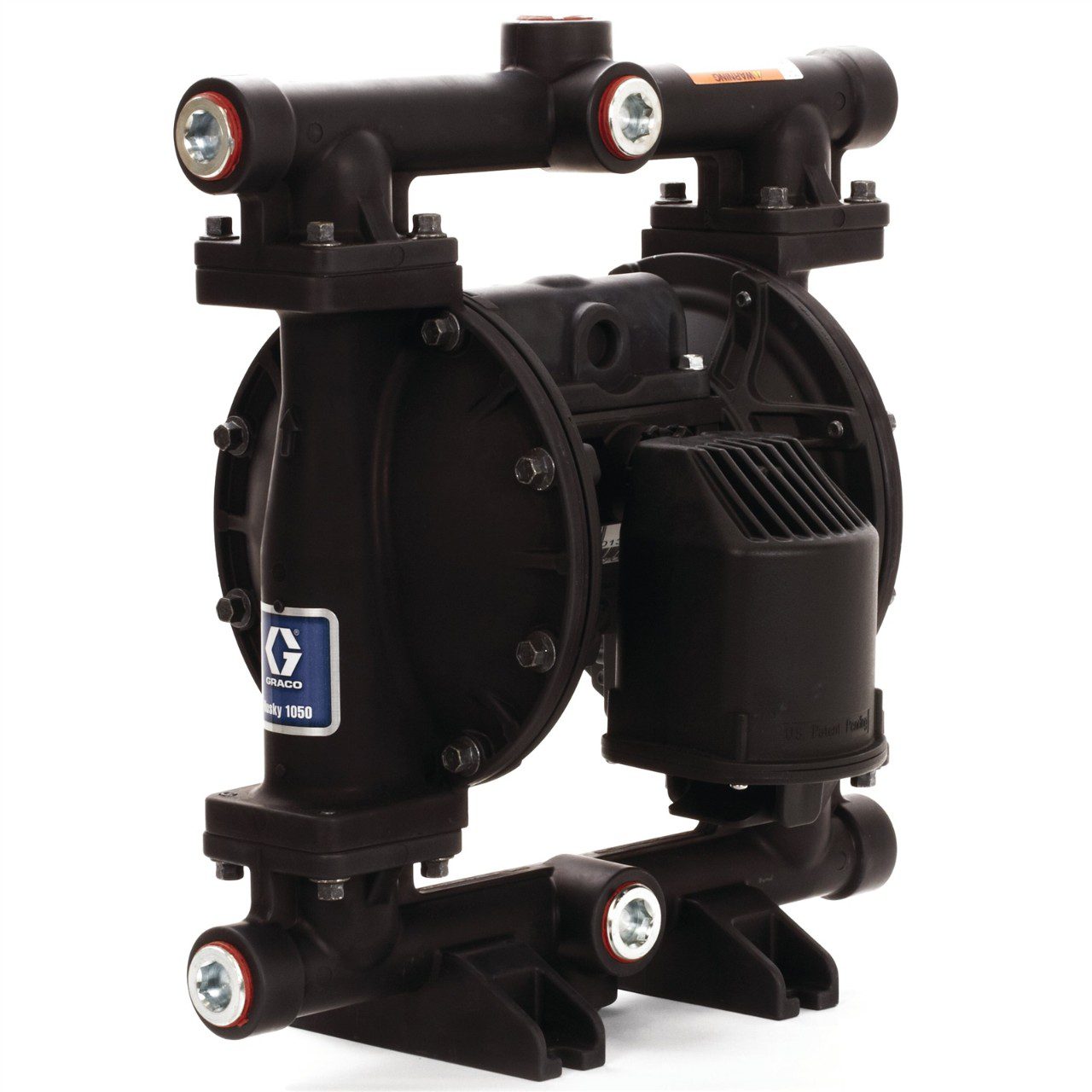

Graco 647021 1″ Diaphragm Pump
£1,558.00 ex VAT
Graco 647021 Husky 1050 AL 1 in. (25.4 mm) NPT Pump, AL Center Section, SS Seats, SS Balls & GE Diaphragm
Need help choosing the right product?
Speak to Aroplus for help with pump selection, material compatibility, sizing or technical requirements.
The Graco 647021 is a 1-inch Husky 1050 air-operated double-diaphragm pump configured with an aluminium pump housing, an aluminium centre body, and NPT connections. Its wetted configuration uses Graco Engineered Thermoplastic diaphragms, 316 stainless steel balls and 316 stainless steel seats.
Graco 647021 configuration
- Pump family: Graco Husky 1050
- Port size: 1 in
- Connection: NPT
- Pump housing: Aluminium
- Centre body: Aluminium
- Diaphragms: Graco Engineered Thermoplastic
- Balls: 316 Stainless Steel
- Seats: 316 Stainless Steel
Husky 1050 pump features
The Husky 1050 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.
| Weight | 18.57 kg |
|---|---|
| Ball Material | 316 Stainless Steel |
| Centre Body Material | Aluminium |
| Diaphragm Material | Graco Engineered Thermoplastic |
| Seat Material | 316 Stainless Steel |
| Port Size | 1 in |
| Thread | NPT |
| Pump Housing Material | Aluminium |
