Description
A belt-driven compressor with integrated frequency control for optimum efficiency: as your compressed air requirements decrease, the energy consumption of the compressors decreases, idle times are minimised and pressure fluctuations are levelled off. Smooth starts and stops protect the materials and extend the lifespan. An integrated dryer ensures constant compressed air quality.
Product

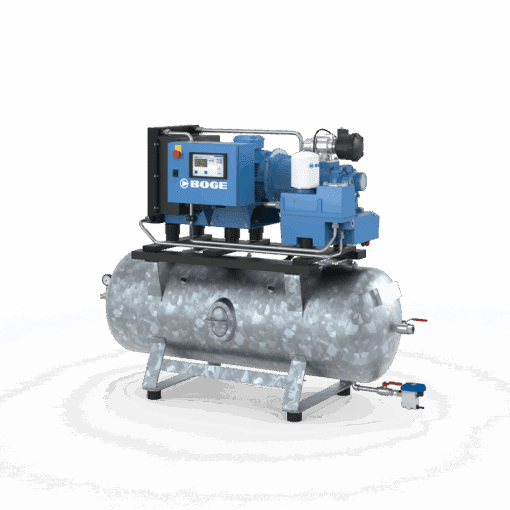

Compact screw compressor, direct coupled, oil lubricated
advantages
- heat recovery can be integrated
- compact design
- refrigerant dryer included
- directly coupled
- with receiver
Additional information
| Power (KW) | 15 |
|---|---|
| Power (HP) | 20 |
| Max Pressure (Bar) | 10, 8 |
| Max Pressure (psig) | 115, 150 |
| m3/min | 2.220, 2.250 |
| CFM | 78.4, 79.5 |
| Dimensions (mm) | 1815 x 720 x 1365 |
| Weight | 470Kg |
