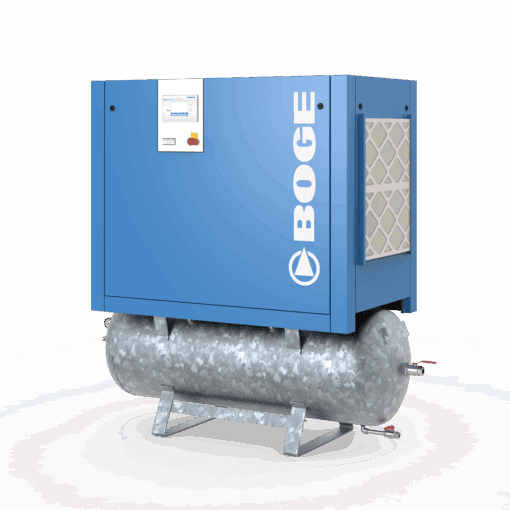

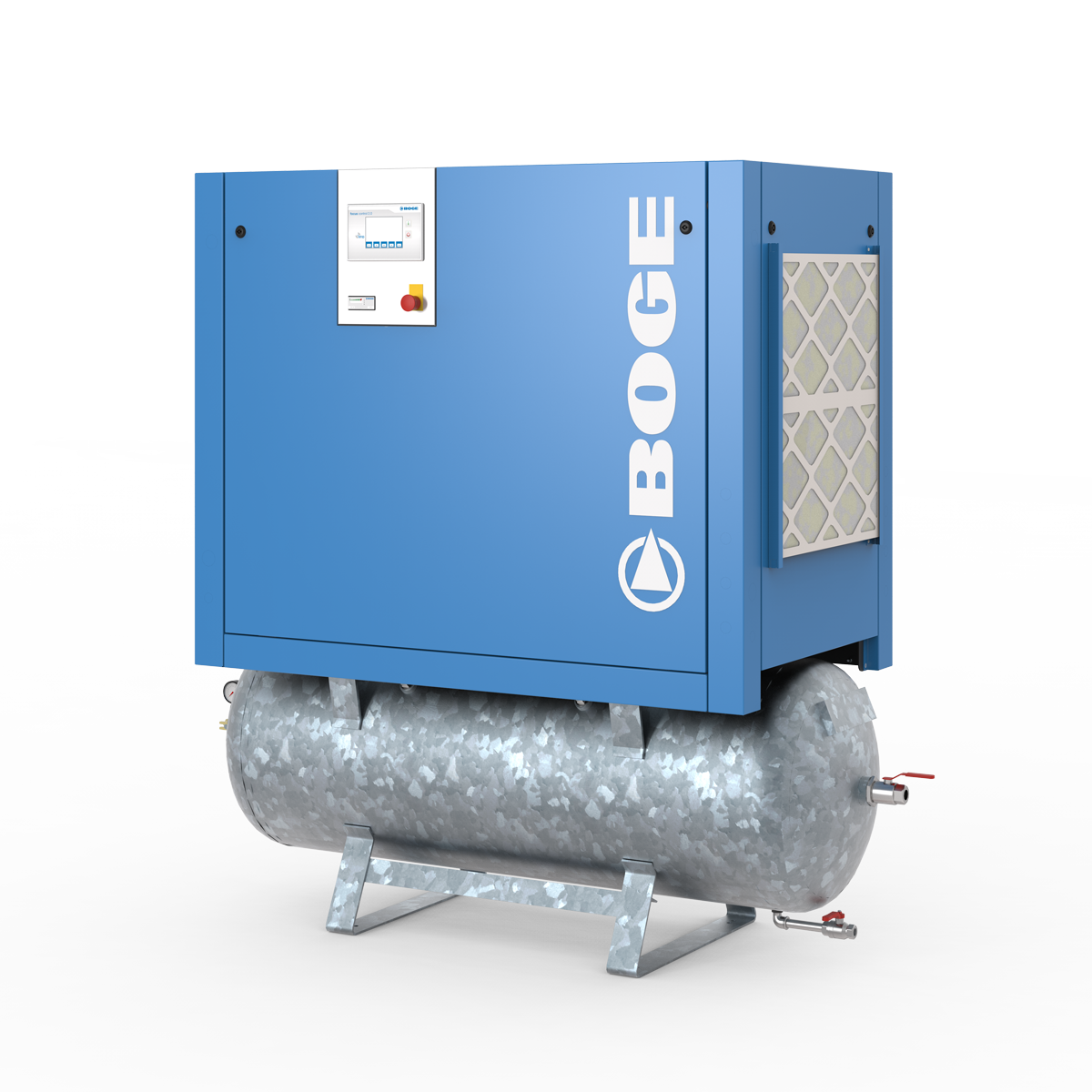

Boge C12-2LFR500

C12-2LFR500

Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, on receiver

sHOP SPARE PARTS NOW

Screw Compressor C-2 LFR

Compact BOGE screw compressors have been known in the industry for their reliability in the generation of compressed air for many years. The frequency control with direct coupling guarantees maximum efficiency and flexibly adjusts the free air delivery to the individual demand at any time. Soft starts and stops conserve the material and prolong the service life. Optimally tailored to your requirements with compressed air receiver and ergonomic control – efficient, compact compressed air station ready for connection.

Product – C12-2LFR500

Compact screw compressor, oil-lubricated, directly coupled, frequency-controlled, on receiver

advantages

  • ergonomic control
  • integrated design
  • extremely quiet
  • heat recovery can be integrated
  • directly coupled
  • with receiver
  • frequency control
Power (KW)

11

Power (HP)

15

Max Pressure (Bar)

10, 13, 15, 7.5

Max Pressure (psig)

109, 145, 189, 217

m3/min

0.460, 0.510, 0.520, 0.530

CFM

16.2, 18, 18.4, 18.7

m3/min (Max)

1.150, 1.310, 1.710, 2.020

CFM (Max)

40.6, 46.3, 60.4, 71.3

Dimensions (mm)

2036 x 915 x 1915

Weight

708Kg
