Description

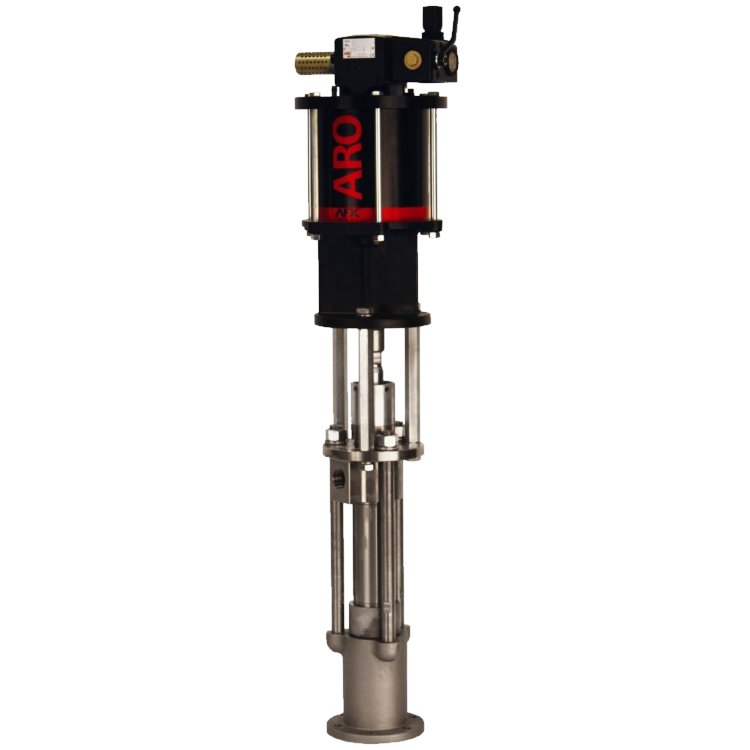

Ingersoll Rand ARO Chop Check Pumps. AF Series with Carbon Steel Nickel Plated Lower Pump and 17-4 Stainless Steel w/ Hard Chrome Plunger.
Additional information
| Weight | 63.5 kg |
|---|---|
| Ratio | 28:1 |
| Plunger Material | 17-4 Stainless Steel w/ Hard Chrome |
| Upper Packings | UHMW-PE |
| Lower Packings | UHMW-PE |
| Lower Pump Model | 67300-C4D |
| Lower Pump Material | Carbon Steel Nickel Plated |
| Air Inlet | 1/2'' |
| Outlet | 1-1/4'' |
| Inlet | Flange |
| Motor Size | 8'' |
| Container | Stubby |
| Overall Height | 1357.88 |
| Lower Height | 772.29 |
| Ball Valve | No |
| DisplacementperCycleIn3(cm3) | 11.0 (180.2) |
| Displacement per Cycle CC | 327.8 |
| Fluid PressureRange PSI(bar) | 840 – 3360 (57.9 – 231.7) |
| Cycles per Gallon (Liter) | 11.55 (3.0) |
| Cycles per Litre | 3 |
| Flow | 6.0 (22.7) |
| Max Flow LPM | 22.7 |
| Air Inlet Pressure Range | 30 – 120 (2.1 – 8.3) |
| Max.Cycles/Minute | 70 |
| Noise Level | 86.8 |
| Centres | 488.95 |
