Description

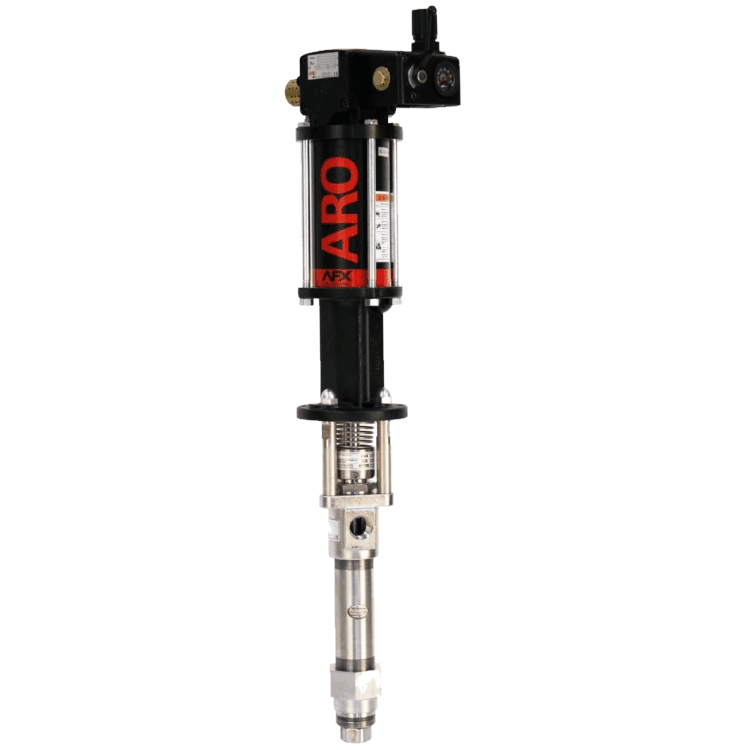

Ingersoll Rand ARO Chop Check Pumps. AF Series with Carbon Steel Nickel Plated Lower Pump and 17-4 Stainless Steel w/ Hard Chrome Plunger.
Additional information
| Weight | 28.9 kg |
|---|---|
| Ratio | 23:1 |
| Plunger Material | 17-4 Stainless Steel w/ Hard Chrome |
| Upper Packings | UHMW-PE/Leather Staggered |
| Lower Packings | UHMW-PE/Leather Staggered |
| Lower Pump Model | 66266-G43-B |
| Lower Pump Material | Carbon Steel Nickel Plated |
| Air Inlet | 1/2'' |
| Outlet | 1'' |
| Inlet | Flange |
| Motor Size | 4.25'' |
| Container | Stubby |
| Overall Height | 1371.83 |
| Lower Height | 780.69 |
| Ball Valve | Yes |
| DisplacementperCycleIn3(cm3) | 11.0 (180.2) |
| Displacement per Cycle CC | 113 |
| Fluid PressureRange PSI(bar) | 0 – 3690 (0 – 254.5) |
| Cycles per Gallon (Liter) | 33.1 (8.8) |
| Cycles per Litre | 8.8 |
| Flow | 1.8 (6.9) |
| Max Flow LPM | 6.9 |
| Air Inlet Pressure Range | 7 – 150 (0 – 10.3) |
| Max.Cycles/Minute | 60 |
| Noise Level | 86.5 |
| Centres | 450.49 |
