Description

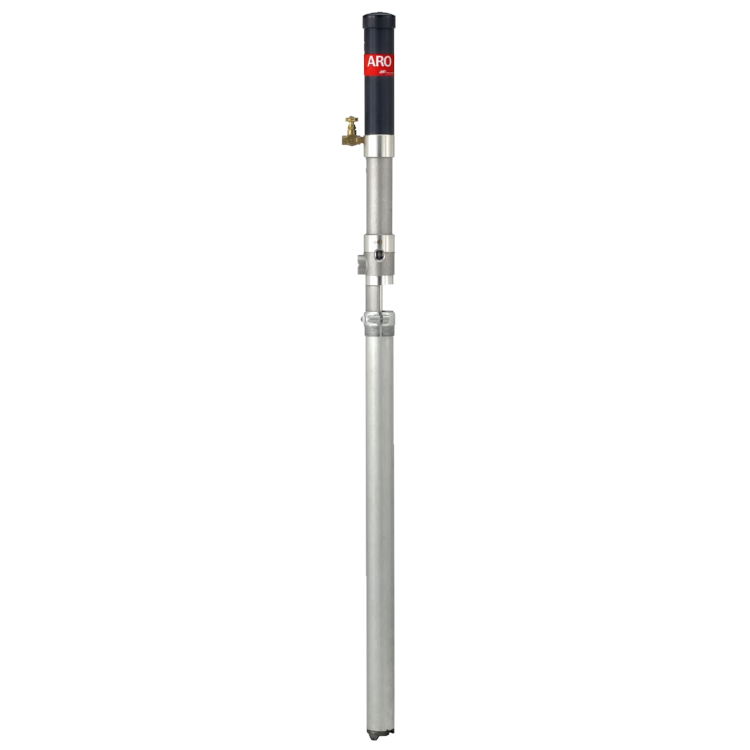

Ingersoll Rand ARO Two Ball Pumps. NM Series with Carbon Steel Lower Pump and Carbon Steel Plunger.
Additional information
| Weight | 5.9 kg |
|---|---|
| Ratio | 1:1 |
| Plunger Material | Carbon Steel |
| Upper Packings | PTFE |
| Lower Packings | PTFE |
| Lower Pump Material | Carbon Steel |
| Air Inlet | 1/4'' |
| Outlet | 3/4'' |
| Inlet | Immersed |
| Motor Size | 2'' |
| Container | 220 Litre |
| Overall Height | 1371.6 |
| Ball Valve | No |
| DisplacementperCycleIn3(cm3) | 11.0 (180.2) |
| Displacement per Cycle CC | 308.08 |
| Fluid PressureRange PSI(bar) | 0 – 150 (0 – 10.3) |
| Cycles per Gallon (Liter) | 12.3 (3.23) |
| Cycles per Litre | 3.2 |
| Flow | 9 (34.02) |
| Max Flow LPM | 34 |
| Air Inlet Pressure Range | 0 – 150 (0 – 10.3) |
| Max.Cycles/Minute | 75 |
| Noise Level | 77.8 |
| Centres | 879.5 |
