PD10P-YPS-PCC

PD10P-YPS-PCC

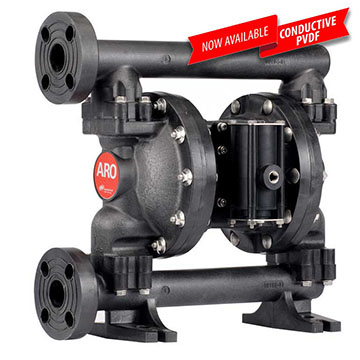

ARO EXP 1” non-metallic diaphragm pumps are a versatile solution for numerous applications. Our EXP 1” models achieve flow rates of upto 53 GPM (200.6 LPM) and offer a wide array of material and porting configurations.
These pumps are often used for transfer, filling, recirculation and supply in Industrial, Chemical and Water/Wastewater treatment markets.

Available with Long-life PTFE diaphragms.

Features
• Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal
• Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
• Versatility – Broad range in materials of construction for optimum fluid compatibility
• Environmentally Sound – Bolted construction for leak-free fluid handling and ribless fluid caps to eliminate cracking
• Serviceability – Ease of service through modular design

Accessories
• 66073-2 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
• 67237 Diaphragm Failure Detection (DFD)
• 67350 Cycle Counter Kit
• 67341-E10N Flange Connection Kit (Side Flange)
• 67341-C10N Flange Connection Kit (Center Flange)
• 637397 Air Section Service Kit
• 637396-XX Fluid Section Service Kit

Weight	8.89 kg

Ratio: 1:1 Maximum GPM (LPM): 53 (200) Displacement per cycle Gallons (Liters): 0.226 (0.86) Air Inlet (Female): 1/4 - 18 N.P.T. Fluid Inlet/Outlet: 1 - 11-1/2 N.P.T.F., Rp1(1-11 BSP) 1” A.N.S.I./DIN flange (side or center) Max. operating pressure psi (bar): 120 (8.3) Suspended solids max. dia. in.(mm): 1/8” (3.2) Weight lbs (kg): Polypropylene, Threaded Port 19.35 (8.78) Polypropylene, Center Ported 19.59 (8.89) Polypropylene, Side Ported 19.87 (9.01) PVDF, Threaded Port 25.83 (11.72) PVDF, Center Ported 26.72 (12.12) PVDF, Side Ported 27.15 (12.32) Maximum dry suction lift ft(m): 19 (5.7) Sound Level: 70 PSI 60 Cycles/Min 79.7 db(A) Muffler Included: 93110
