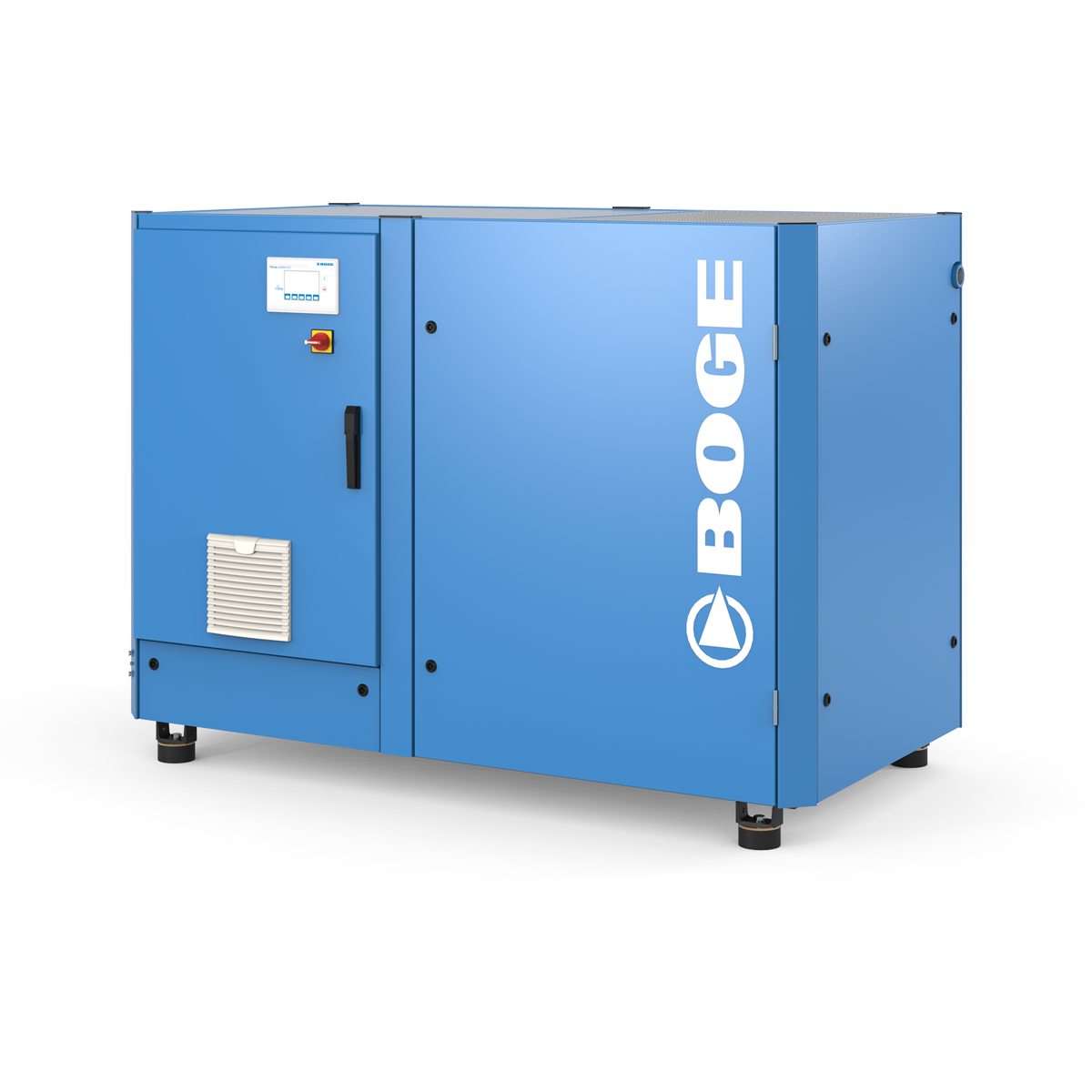

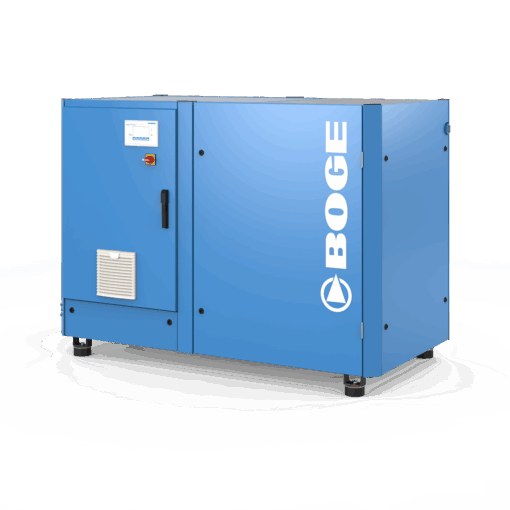

Boge SLF61-3

SLF61-3

Screw compressor with frequency control, direct coupled, oil lubricated

sHOP SPARE PARTS NOW

Screw Compressor SLF

The SLF machines work best in specific areas. Used in conjunction with direct drive and frequency control, they form a very flexible system. The delivery quantity is determined by the pressure value – so the machine delivers only as much compressed air as is actually needed.

Product – SLF61-3

Screw compressor with frequency control, direct coupled, oil lubricated

advantages

  • heat recovery can be integrated
  • directly coupled
  • focus control 2.0
  • maximum efficiency
  • frequency control
  • frequency controlled cooling fan
Power (KW)

45

Power (HP)

60

Max Pressure (Bar)

10, 13, 7.5, 8

Max Pressure (psig)

110, 115, 150, 190

m3/min

2.140, 2.900, 3.100, 3.200

CFM

102.4, 109.5, 113, 75.6

m3/min (Max)

5.780, 7.000, 7.900, 8.190

CFM (Max)

204.1, 247.2, 279, 289.2

Dimensions (mm)

2045x1065x1455

Weight

1380
