Description
Screw Compressor – SD Series
Optimised like always for efficiency, quiet operation and sound pressure levels – the new generation of BOGE SD Series. The integrated dryer ensures constant air quality.

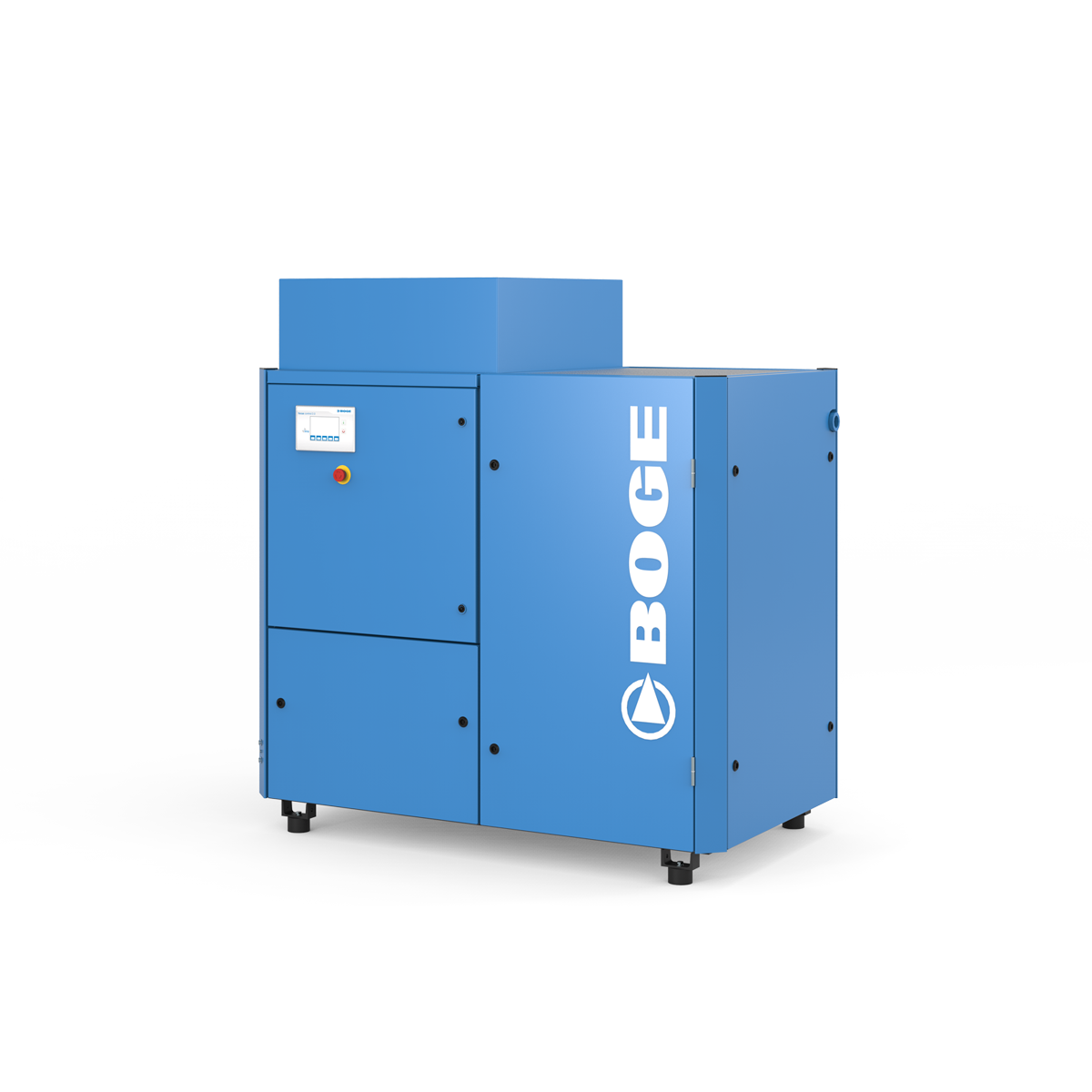

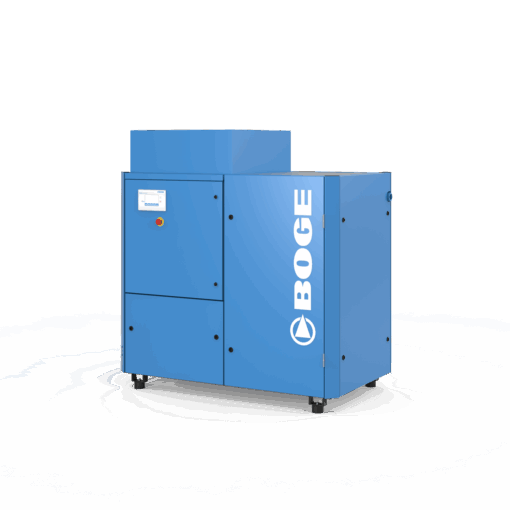

Product – SD40-3
Screw compressor with dryer, oil lubricated
advantages
- heat recovery can be integrated
- refrigerant dryer included
- extremely quiet
- focus control 2.0
- frequency controlled cooling fan
Additional information
Power (KW) | 30 |
---|---|
Power (HP) | 40 |
Max Pressure (Bar) | 10, 13, 8 |
Max Pressure (psig) | 115, 150, 190 |
m3/min | 3.860, 4.770, 5.310 |
CFM | 136.3, 168.5, 187.5 |
Dimensions (mm) | 1620 x 990 x 1450 |
Weight | 970 |
