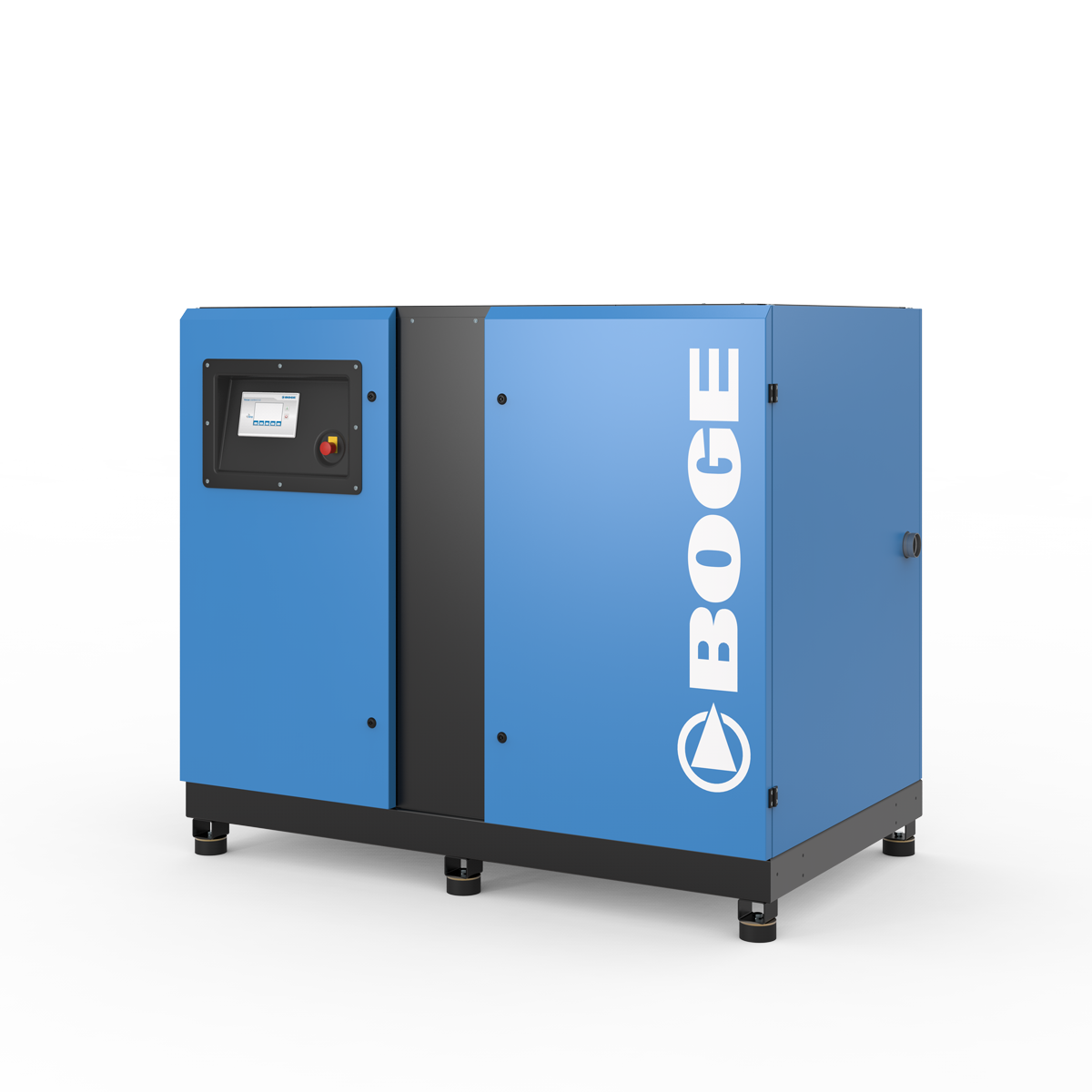

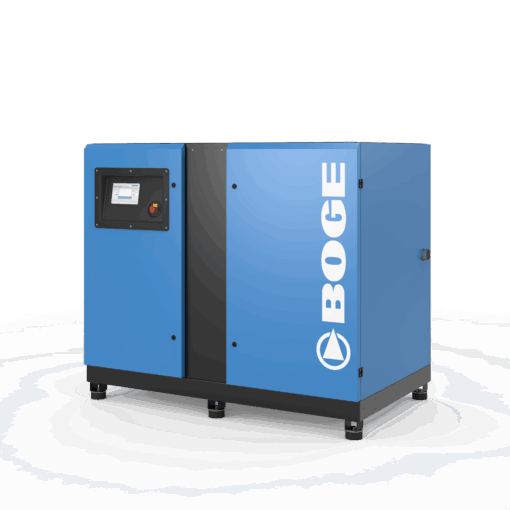

Boge S55-4L

S55-4L

Screw compressors, oil-injection cooled

sHOP SPARE PARTS NOW

Screw Compressor S-4

The “large” screw compressors in BOGE’s S-4 series already represented a significant breakthrough in energy savings combined with sound insulation and ease of maintenance. And now, those same advantages are also available in a more compact form: the 45–75 kW S-4 series models not only boast reliable, remarkably quiet operation, but also achieve astonishing optimum efficiency values – in part thanks to the directly powered, hermetically sealed “Integrate Drive” air-end with optimum efficiency.

Product – S55-4L

Screw compressors, oil-injection cooled

advantages

  • Best efficiency ratings in compact class
  • Practically maintenance-free BOGE “Integrate Drive” air-end
  • Powerful energy-saving IE4- and permanent magnet motors
  • Significantly reduced noise levels
  • Innovative separation technology for safe cartridge replacement and simplified maintenance
Power (KW)

55

Power (HP)

75

Max Pressure (Bar)

7.5

Max Pressure (psig)

109

m3/min

9.810

CFM

346

Dimensions (mm)

2100 x 1200 x 1720

Weight

2030Kg
