Description

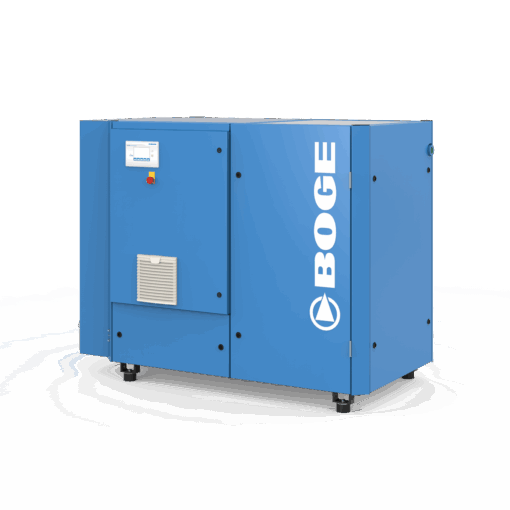

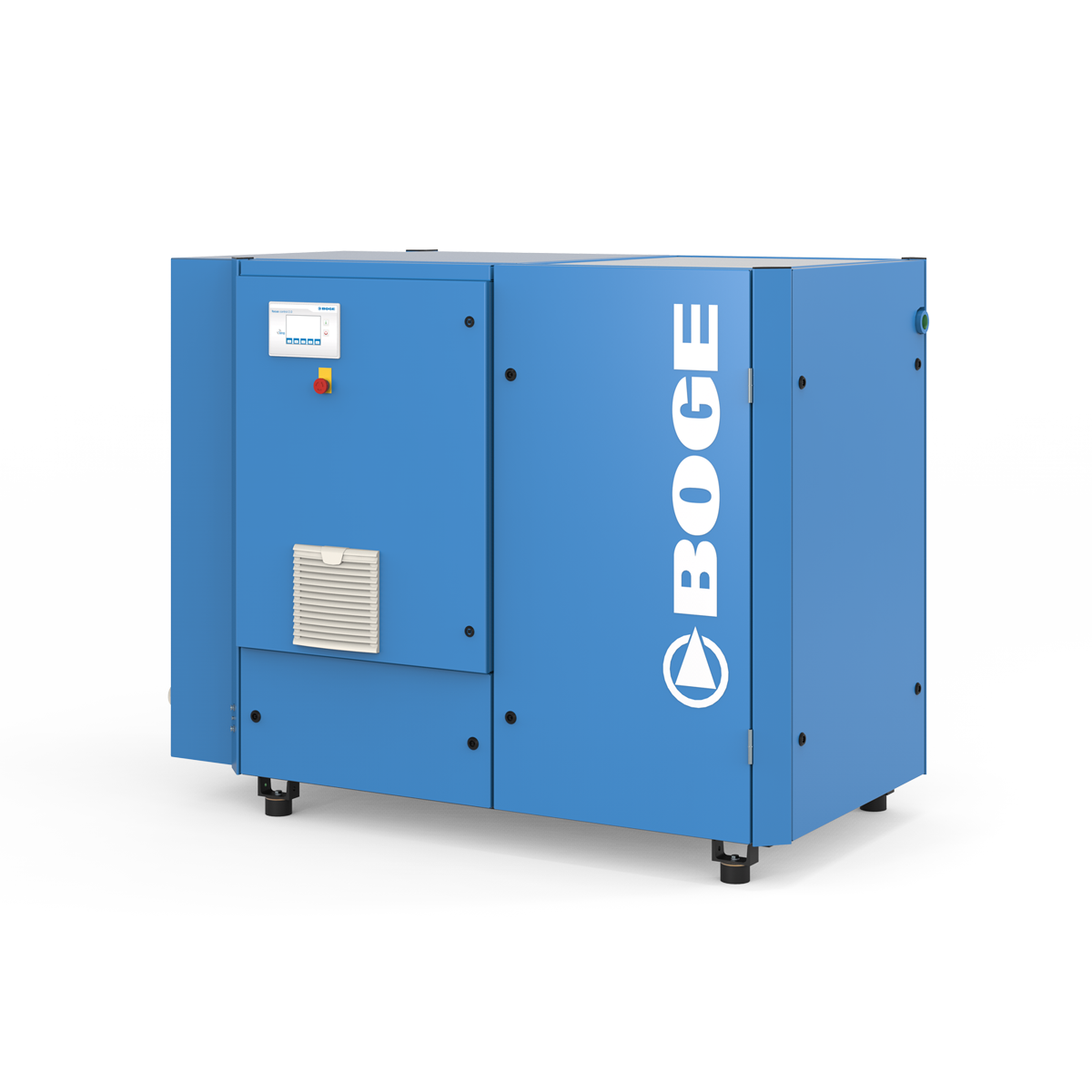

Screw Compressor S-4 LF
The “large” screw compressors in BOGE’s S-4 series already represented a significant breakthrough in energy savings combined with sound insulation and ease of maintenance. And now, those same advantages are also available in a more compact form: the 45–75 kW S-4 series models not only boast reliable, remarkably quiet operation, but also achieve astonishing optimum efficiency values – in part thanks to the directly powered, hermetically sealed “Integrate Drive” air-end with optimum efficiency.
Product – S46-4LF
Screw compressor, oil-injection cooled and variable speed
advantages
- Best efficiency ratings in compact class
- Practically maintenance-free BOGE “Integrate Drive” air-end
- Powerful energy-saving IE4- and permanent magnet motors
- Significantly reduced noise levels
- Innovative separation technology for safe cartridge replacement and simplified maintenance
Additional information
| Power (KW) | 45 |
|---|---|
| Power (HP) | 60 |
| Max Pressure (Bar) | 10, 13, 7.5 |
| Max Pressure (psig) | 109, 145, 189 |
| m3/min | 2.370, 2.440, 3.330 |
| CFM | 118, 84, 86 |
| m3/min (Max) | 5.850, 7.200, 8.380 |
| CFM (Max) | 207, 254, 296 |
| Dimensions (mm) | 2100 x 1200 x 1720 |
| Weight | 1770Kg |
